Programmed DDE control unit for BMW 3 Series E46 330d (2004)

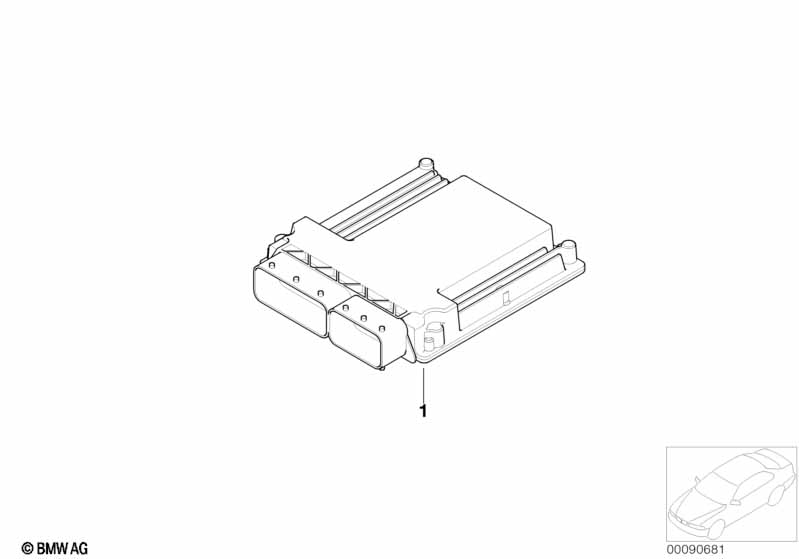

This Programmed DDE control unit technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | This part number is not available for orders, and is only used to determine the part number of a programmed control unit. This is required to complete the exchange procedure in ISTA(P). |
|||||||||
| For vehicles with Manual Transmission |
=Yes |
|||||||||
| 01 | Programmed DDE control unit | 5.06 | 1 | 09/2003 | 13617793922 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 01 | Programmed DDE control unit | 5.06 | 1 | 09/2003 | 13617793926 | Shop at ECS Tuning | ||||
| For vehicles with Data record without EOBD and Manual Transmission |
S861A=Yes =Yes |
|||||||||
| 01 | Programmed DDE control unit | 5.06 | 1 | 09/2003 | 13617793920 | Shop at ECS Tuning | ||||
| For vehicles with EU4 exhaust emissions standard and Manual Transmission |
S167A=Yes =Yes |
|||||||||
| 01 | Programmed DDE control unit | 5.07 | 1 | 13617805073 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Data record without EOBD |
S205A=Yes S861A=Yes |
|||||||||
| 01 | Programmed DDE control unit | 5.06 | 1 | 09/2003 | 13617793924 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Hot-climate version and Maintenance interval encoding |
S205A=Yes S823A=Yes S984A=Yes |
|||||||||
| 01 | Programmed DDE control unit | 5.06 | 1 | 13617793934 | Shop at ECS Tuning | |||||
| For vehicles with Hot-climate version or Maintenance interval encoding and Manual Transmission |
S823A=Yes S984A=Yes =Yes |
|||||||||
| 01 | Programmed DDE control unit | 5.06 | 1 | 13617793932 | Shop at ECS Tuning | |||||
