Fuel tank/fuel feed for BMW 3 Series E21 323i (1982)

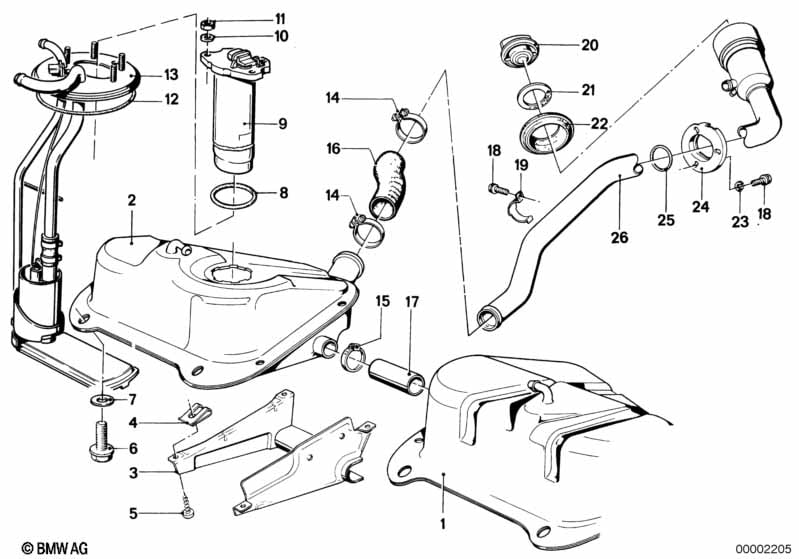

This Fuel tank/fuel feed technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version Australia |
L810A=Yes |
||||||||
| 01 | Fuel tank left | 1 | 08/1979 | 16111151529 | $298.96 | Shop at ECS Tuning | ||||
| 02 | Fuel tank right | 1 | 08/1979 | 16111120200 | $298.96 | ENDED | Shop at ECS Tuning | |||
| 03 | Protection plate | 1 | 08/1979 | 16121151525 | $17.71 | Shop at ECS Tuning | ||||
| 04 | Body nut | B6,3-6 | 4 | 08/1979 | 16111152613 | $0.35 | Shop at ECS Tuning | |||
| 05 | Hexagon sheet-metal bolt | ST6,3X16-R-U2-Z | 4 | 08/1979 | 07119905017 | $0.38 | Shop at ECS Tuning | |||
| 06 | Hex bolt | M8X16-8.8-ZNS3 | 6 | 07119902900 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Washer | A8,4 | 6 | 08/1979 | 33311108205 | $0.16 | Shop at ECS Tuning | |||
| 08 | Gasket ring | 1 | 08/1979 | 16121150391 | $4.18 | Shop at ECS Tuning | ||||
| 09 | Sending unit assy metal tank | 1 | 08/1979 | 16121150482 | $146.93 | ENDED | Shop at ECS Tuning | |||
| 10 | Washer | 10X5,3X1-200 HV | 4 | 08/1979 | 07119904206 | Shop at ECS Tuning | ||||
| 10 | Washer | 5.3-140 HV-ZNS | 4 | 08/1979 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 11 | Hex nut | M5-8-ZNNIV SI | 4 | 08/1979 | 07119905729 | Shop at ECS Tuning | ||||
| 12 | O-ring | D=58,8X4,2 | 1 | 08/1979 | 16111744369 | $1.68 | Shop at ECS Tuning | |||
| 13 | Suction device w.pump | 1 | 08/1979 | 16141179423 | $290.05 | ENDED | Shop at ECS Tuning | |||
| 14 | Hose clamp | L42-48 | 2 | 08/1979 | 07129952119 | $1.15 | Shop at ECS Tuning | |||
| 15 | Hose clamp | L37-43 | 2 | 08/1979 | 07129952117 | $1.09 | Shop at ECS Tuning | |||
| 16 | Hose | 1 | 08/1979 | 16121176793 | $34.38 | Shop at ECS Tuning | ||||
| 17 | Hose | 1 | 08/1979 | 16121176795 | $24.82 | Shop at ECS Tuning | ||||
| 18 | Hex bolt with washer | M6X16-U1-8.8 | 3 | 08/1979 | 07119904524 | $0.25 | Shop at ECS Tuning | |||
| 19 | Clamp | 1 | 08/1979 | 16121115267 | $0.38 | ENDED | Shop at ECS Tuning | |||
| 20 | Filler cap without lock | 1 | 08/1979 | 16116750564 | $26.83 | Shop at ECS Tuning | ||||
| 21 | Rubber seal | 1 | 08/1979 | 16111179680 | $6.70 | Shop at ECS Tuning | ||||
| 22 | Rubber seal | 1 | 08/1979 | 16111105721 | $6.83 | ENDED | Shop at ECS Tuning | |||
| 23 | Gasket ring | 3 | 08/1979 | 51131808112 | $0.44 | Shop at ECS Tuning | ||||
| 24 | Flange | 1 | 08/1979 | 16121114977 | $1.97 | ENDED | Shop at ECS Tuning | |||
| 25 | Gasket | 1 | 08/1979 | 16121114976 | $1.60 | Shop at ECS Tuning | ||||
| 26 | Filler pipe | 1 | 08/1979 | 16121115164 | $47.65 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 323i Fuel tank/fuel feed?
- This technical diagram illustrates the Fuel tank/fuel feed within the Fuel Supply group for the 3 Series E21 323i produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Fuel tank left (Part #16111151529).
- Which models use the hardware listed in this Fuel tank/fuel feed?
- The hardware and components featured in the Fuel tank/fuel feed are specific to the 3 Series E21 323i produced during 1982. These technical specifications ensure that parts like the Fuel tank left (16111151529) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuel tank/fuel feed assembly?
- Each item in the Fuel tank/fuel feed corresponds to the numbered list below the illustration. For the 3 Series E21 323i, you can identify the Fuel tank left by locating its position on the schematic, which then links to the official BMW part number 16111151529 for the Fuel Supply section.
