Fuel tank/fuel feed for BMW 6 Series E24 635CSi (1989)

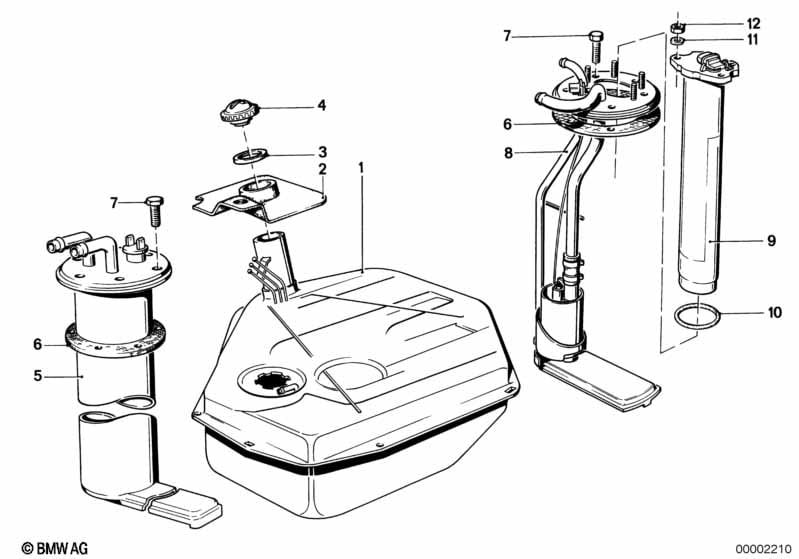

This Fuel tank/fuel feed technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 635CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Metal fuel tank | 63L | 1 | 09/1979 | 16111176518 | $374.25 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Rubber seal | 1 | 09/1979 | 16101152998 | $14.52 | ENDED | Shop at ECS Tuning | |||
| 02 | Rubber seal | 1 | 16101152998 | $14.52 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Metal fuel tank | 63L | X | 16111176518 | $374.25 | Shop at ECS Tuning | ||||
| 02 | Rubber seal | 1 | 16111121878 | $15.12 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Metal fuel tank | 63L | X | 16111176518 | $374.25 | Shop at ECS Tuning | ||||
| -- | Metal fuel tank | 63L | X | 16111176556 | $268.96 | ENDED | Shop at ECS Tuning | |||
| 03 | Rubber seal | 1 | 16111179680 | $6.70 | Shop at ECS Tuning | |||||
| 04 | Filler cap without lock | 1 | 16116750564 | $26.83 | Shop at ECS Tuning | |||||
| 06 | Gasket | 1 | 16121116966 | $3.64 | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M5X14-8.8-ZNNIV | 6 | 07119904269 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Suction device with pre-supply pump | 1 | 09/1978 | 16141179425 | $230.67 | Shop at ECS Tuning | ||||
| 09 | Sending unit assy metal tank | 1 | 16121153050 | $138.71 | Shop at ECS Tuning | |||||
| 10 | Gasket ring | 1 | 09/1978 | 16121150391 | $4.18 | Shop at ECS Tuning | ||||
| 11 | Washer | 10X5,3X1-200 HV | 4 | 09/1978 | 07119904206 | Shop at ECS Tuning | ||||
| 11 | Washer | 5.3-140 HV-ZNS | 4 | 09/1978 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 12 | Hex nut | M5-8-ZNNIV SI | 4 | 09/1978 | 07119905729 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
