Fuel tank/fuel feed for BMW 3 Series E30 320i (1990)

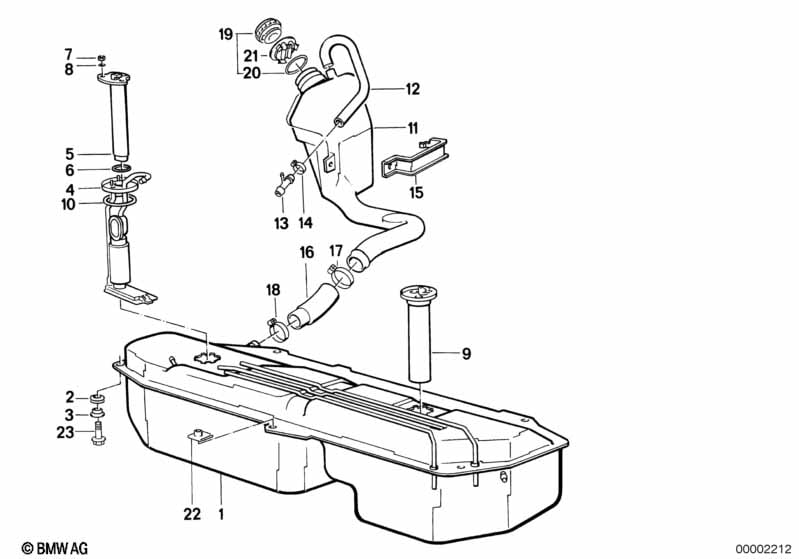

This Fuel tank/fuel feed technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Gulf version |
L822A=Yes |
|||||||||
| 11 | Filler pipe | 1 | 09/1987 | 16111179209 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 320i Fuel tank/fuel feed?
- This technical diagram illustrates the Fuel tank/fuel feed within the Fuel Supply group for the 3 Series E30 320i produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the Filler pipe (Part #16111179209).
- Which models use the hardware listed in this Fuel tank/fuel feed?
- The hardware and components featured in the Fuel tank/fuel feed are specific to the 3 Series E30 320i produced during 1990. These technical specifications ensure that parts like the Filler pipe (16111179209) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuel tank/fuel feed assembly?
- Each item in the Fuel tank/fuel feed corresponds to the numbered list below the illustration. For the 3 Series E30 320i, you can identify the Filler pipe by locating its position on the schematic, which then links to the official BMW part number 16111179209 for the Fuel Supply section.
