Fuel tank/attaching parts for BMW 6 Series E24 633CSi (1982)

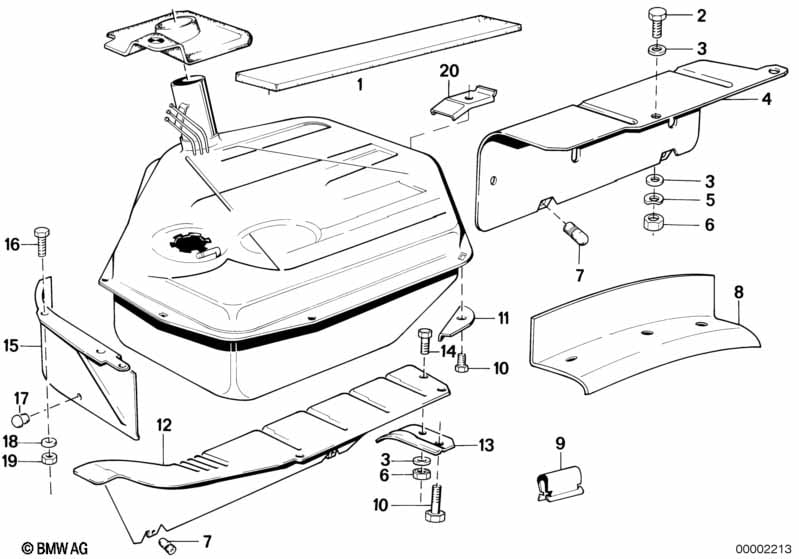

This Fuel tank/attaching parts technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Base | 220MM | 1 | 16111108667 | $3.59 | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M6X16-8.8-ZNS3 | 1 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 03 | Spring washer Black | B6-ZN | 3 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Protection plate | 1 | 16111118654 | $11.82 | ENDED | Shop at ECS Tuning | ||||
| 05 | Spring washer Black | B6-ZN | 1 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 06 | Hex nut | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Plug | 2 | 32212675171 | $1.41 | ENDED | Shop at ECS Tuning | ||||
| 08 | Protection plate | 1 | 16111118105 | $2.82 | ENDED | Shop at ECS Tuning | ||||
| 09 | Clamp | 1 | 16111117201 | $0.30 | Shop at ECS Tuning | |||||
| 10 | Hex bolt with washer | M10X30-Z2 | 3 | 07119913941 | $1.10 | Shop at ECS Tuning | ||||
| 11 | Reinforcement | 1 | 16111121378 | $1.45 | ENDED | Shop at ECS Tuning | ||||
| 12 | Protection plate | 1 | 16111177253 | $27.11 | Shop at ECS Tuning | |||||
| 13 | Support | 1 | 16111176382 | $1.76 | ENDED | Shop at ECS Tuning | ||||
| 14 | Hex bolt | M6X12-8.8-ZNNIV | 3 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 15 | Protection plate | 1 | 16111178194 | $27.11 | ENDED | Shop at ECS Tuning | ||||
| 16 | Hex bolt | M6X16-8.8-ZNS3 | 1 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 17 | Plug | 2 | 32212675171 | $1.41 | ENDED | Shop at ECS Tuning | ||||
| 19 | Hex nut with plate | M6 | 1 | 07147134319 | $1.05 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
