Fuel tank/attaching parts for BMW 7 Series E23 728 (1978)

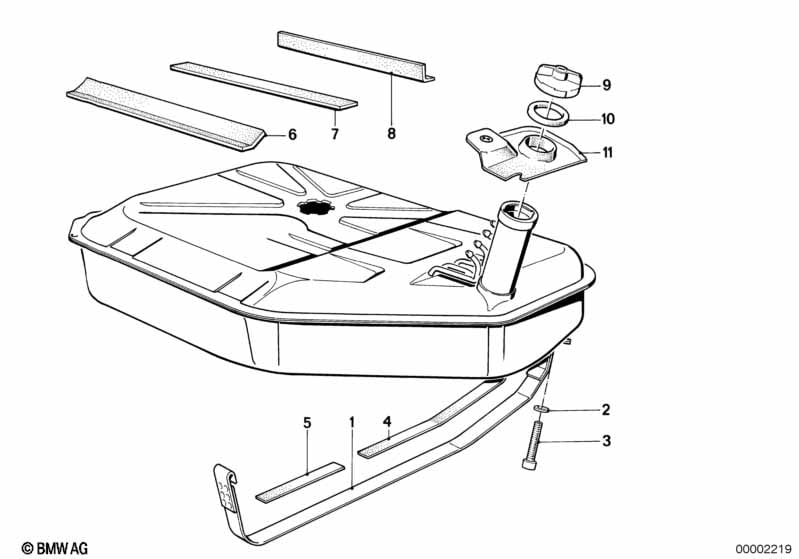

This Fuel tank/attaching parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tension strap | 2 | 16111118226 | $13.33 | Shop at ECS Tuning | |||||
| 02 | Washer | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 03 | Fillister-head screw | M8X40-8.8-ZNS3 | 2 | 07119902984 | $1.93 | Shop at ECS Tuning | ||||
| 04 | Base | 660MM | X | 16111178667 | $7.52 | Shop at ECS Tuning | ||||
| 05 | Base | 660MM | X | 16111178667 | $7.52 | Shop at ECS Tuning | ||||
| 06 | Base | 2 | 16111115719 | $2.55 | ENDED | Shop at ECS Tuning | ||||
| 07 | Base | 2 | 16111115718 | $2.26 | ENDED | Shop at ECS Tuning | ||||
| 08 | Base | 2 | 16111180163 | $1.08 | Shop at ECS Tuning | |||||
| 09 | Filler cap without lock | 1 | 16116750564 | $26.83 | Shop at ECS Tuning | |||||
| 09 | Lockable filler cap | CODE | 1 | 16121178534 | Shop at ECS Tuning | |||||
| 10 | Rubber seal | 1 | 16111179680 | $6.70 | Shop at ECS Tuning | |||||
| 11 | Rubber seal | 1 | 16121119375 | $8.20 | ENDED | Shop at ECS Tuning |
