Fuel tank/fuel feed for BMW 7 Series E23 732i (1982)

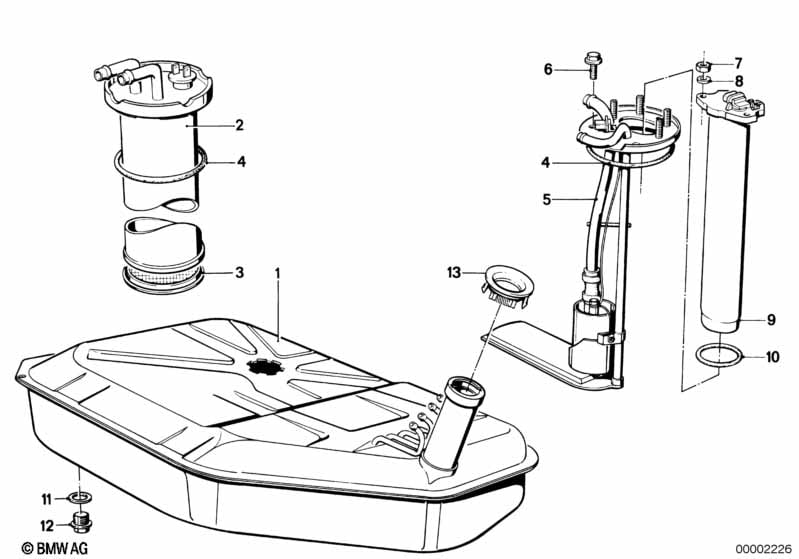

This Fuel tank/fuel feed technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 732i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Metal fuel tank | 100L | 1 | 09/1980 | 16111176365 | $449.54 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Saudi Arabia version |
=Yes |
|||||||||
| 01 | Metal fuel tank | 85L | 1 | 16111177621 | $301.32 | ENDED | Shop at ECS Tuning | |||
| 02 | Sending unit assy metal tank | 1 | 09/1980 | 16121151825 | $184.71 | ENDED | Shop at ECS Tuning | |||
| For vehicles with On-board computer |
=Yes |
|||||||||
| 02 | Sending unit assy metal tank | 1 | 09/1980 | 09/1982 | 16121153030 | $175.21 | ENDED | Shop at ECS Tuning | ||
| 02 | Sending unit assy metal tank | 1 | 09/1980 | 09/1982 | 16121153030 | $175.21 | ENDED | Shop at ECS Tuning | ||
| 04 | O-ring | D=58,8X4,2 | 1 | 16111744369 | $1.68 | Shop at ECS Tuning | ||||
| For vehicles with Saudi Arabia version |
=Yes |
|||||||||
| 04 | Gasket | 1 | 16121116966 | $3.64 | Shop at ECS Tuning | |||||
| For vehicles with National version Australia |
L810A=Yes |
|||||||||
| 05 | Suction device with pre-supply pump | 1 | 09/1980 | 16141179426 | $276.68 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Saudi Arabia version |
=Yes |
|||||||||
| 05 | Suction device with pre-supply pump | 1 | 16141179427 | $276.68 | ENDED | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M5X14-8.8-ZNNIV | 6 | 07119904269 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Hex nut | M5-8-ZNNIV SI | 4 | 07119905729 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
