Heat resistant plate for BMW 3 Series E30 325ix (1992)

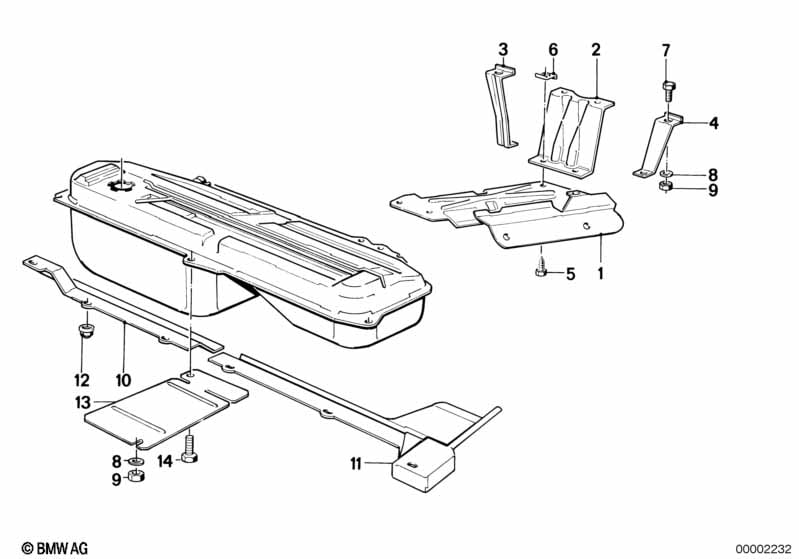

This Heat resistant plate technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heat resistant plate | 1 | 16111179644 | $29.42 | ENDED | Shop at ECS Tuning | ||||
| 03 | Bracket right | 1 | 16111177347 | $4.53 | Shop at ECS Tuning | |||||
| 04 | Bracket left | 1 | 16111177346 | $4.53 | Shop at ECS Tuning | |||||
| 05 | Hex head screw | ST6,3X16-C-Z2-Z | 4 | 07119916966 | $0.27 | ENDED | Shop at ECS Tuning | |||
| 06 | Body nut | ST6,3-10 | 2 | 07129901672 | $0.35 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M6X16-U2-ZNS3 | 2 | 07119902913 | Shop at ECS Tuning | |||||
| 08 | Washer | A6,4-200HV-ZNS3 | 2 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 09 | Hex nut | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Protection plate | 1 | 16111179429 | $9.74 | Shop at ECS Tuning | |||||
| 11 | Protection plate | 1 | 11/1988 | 16111180292 | $9.20 | Shop at ECS Tuning | ||||
| 12 | Plastic nut for coarse threaded pin | M6 | 5 | 16131176747 | $0.53 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325ix Heat resistant plate?
- This technical diagram illustrates the Heat resistant plate within the Fuel Supply group for the 3 Series E30 325ix produced during 1992. It provides a detailed exploded view of the components, identifying key parts such as the Heat resistant plate (Part #16111179644).
- Which models use the hardware listed in this Heat resistant plate?
- The hardware and components featured in the Heat resistant plate are specific to the 3 Series E30 325ix produced during 1992. These technical specifications ensure that parts like the Heat resistant plate (16111179644) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Heat resistant plate assembly?
- Each item in the Heat resistant plate corresponds to the numbered list below the illustration. For the 3 Series E30 325ix, you can identify the Heat resistant plate by locating its position on the schematic, which then links to the official BMW part number 16111179644 for the Fuel Supply section.
