Activated Charcoal Filter/FUEL VENTILAT for BMW 8 Series E31 850Ci (1999)

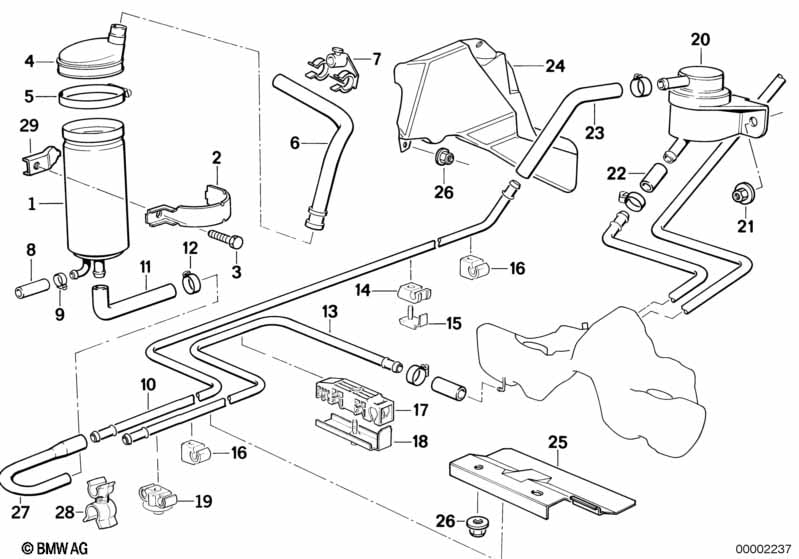

This Activated Charcoal Filter/FUEL VENTILAT technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Activated Charcoal Filter | 1 | 16131180462 | $131.82 | Shop at ECS Tuning | |||||
| 02 | Bracket activated Carbon container | 1 | 16131181073 | $5.33 | Shop at ECS Tuning | |||||
| 03 | Hex bolt with washer | M6X16-U1-8.8 | 1 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Connector | 1 | 16111181026 | $13.97 | ENDED | Shop at ECS Tuning | ||||
| 05 | Hose clamp | L83-90 | 1 | 07129952133 | $1.78 | Shop at ECS Tuning | ||||
| 06 | Pipe | 1 | 16131181029 | $7.45 | Shop at ECS Tuning | |||||
| 07 | Plug-in connection bracket | 1 | 61131374899 | $1.43 | Shop at ECS Tuning | |||||
| 08 | Fuel hose | 6X11MM | X | 13311272750 | $11.62 | Shop at ECS Tuning | ||||
| 09 | Hose clamp | L=9-12 | 2 | 07129952102 | $1.18 | Shop at ECS Tuning | ||||
| 10 | Vent pipe | 1 | 16131182051 | Shop at ECS Tuning | ||||||
| 11 | Fuel hose | 561MM-920MM | 1 | 13311722565 | $45.38 | Shop at ECS Tuning | ||||
| 12 | Hose clamp | L12-15 | 6 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 13 | Fuel return line | 1 | 16121180337 | $16.55 | Shop at ECS Tuning | |||||
| 14 | Guide | 4 | 16131179019 | $1.08 | Shop at ECS Tuning | |||||
| 15 | Bracket breather pipe | 4 | 16131179018 | $1.15 | Shop at ECS Tuning | |||||
| 16 | Tubing support | 4 | 16131177494 | $1.60 | Shop at ECS Tuning | |||||
| 17 | Fuel pipe bracket | 5 | 16121180340 | $3.23 | Shop at ECS Tuning | |||||
| 17 | Tubing support | 5-FACH | 5 | 16121180378 | $2.17 | Shop at ECS Tuning | ||||
| 18 | Fuel pipe bracket | 5 | 16121180416 | $2.17 | Shop at ECS Tuning | |||||
| 19 | Pipe clip | 1 | 16121179396 | $1.08 | ENDED | Shop at ECS Tuning | ||||
| 20 | Return valve | 1 | 16131182761 | $30.32 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Hose | 8X13X190 | 1 | 16131182777 | $21.20 | Shop at ECS Tuning | ||||
| 21 | Hex nut | BM6-8-ZNFE SW | 1 | 07129905470 | $0.29 | Shop at ECS Tuning | ||||
| 22 | Fuel hose | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 23 | Hose | 1 | 16131179773 | $21.20 | ENDED | Shop at ECS Tuning | ||||
| 24 | Cover, wheel housing, rear right | 1 | 16131181088 | $41.03 | Shop at ECS Tuning | |||||
| 25 | Stone chip right | ALU | 1 | 16121181350 | Shop at ECS Tuning | |||||
| 26 | Plastic nut for coarse threaded pin | M6 | X | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| For vehicles with without catalytic converter and Catalytic converter |
S199A=Yes =No |
|||||||||
| 27 | End piece | 1 | 16131179488 | $6.70 | Shop at ECS Tuning | |||||
| 28 | Cable holder | D=8/12 | 1 | 12511268352 | $1.23 | Shop at ECS Tuning | ||||
| 29 | Bracket activated Carbon container | 1 | 07/1992 | 16131182186 | ENDED | Shop at ECS Tuning | ||||
