Fuel tank/fuel feed for BMW 3 Series E30 325ix (1991)

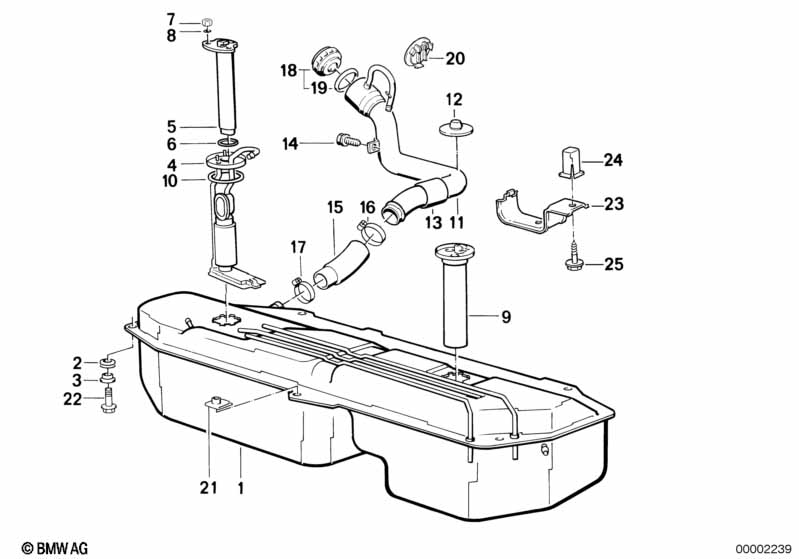

This Fuel tank/fuel feed technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Metal fuel tank | 63L | 1 | 11/1987 | 16111180175 | $722.48 | Shop at ECS Tuning | |||
| 02 | Rubber grommet | 5 | 11/1987 | 16111180152 | $3.58 | Shop at ECS Tuning | ||||
| 03 | Spacer sleeve | 5 | 11/1987 | 16111180153 | $4.18 | Shop at ECS Tuning | ||||
| 04 | Suction device w.pump | 1 | 11/1987 | 16141184022 | $402.64 | Shop at ECS Tuning | ||||
| 05 | Sending unit assy metal tank | 1 | 11/1987 | 16141152266 | $138.71 | Shop at ECS Tuning | ||||
| 06 | Gasket ring | 1 | 11/1987 | 16121150391 | $4.18 | Shop at ECS Tuning | ||||
| 07 | Hex nut | M5-8-ZNNIV SI | 4 | 11/1987 | 07119905729 | Shop at ECS Tuning | ||||
| 08 | Washer | 10X5,3X1-200 HV | 4 | 11/1987 | 07119904206 | Shop at ECS Tuning | ||||
| 08 | Washer | 5.3-140 HV-ZNS | 4 | 11/1987 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 09 | Sending unit assy metal tank | 1 | 11/1987 | 16141179720 | $138.71 | Shop at ECS Tuning | ||||
| 10 | O-ring | D=58,8X4,2 | 1 | 11/1987 | 16111744369 | $1.68 | Shop at ECS Tuning | |||
| 11 | Filler pipe | 1 | 11/1987 | 16111180956 | $234.39 | Shop at ECS Tuning | ||||
| 12 | Spacer | 1 | 11/1987 | 16111176708 | $4.18 | Shop at ECS Tuning | ||||
| 13 | Rubber grommet | 1 | 11/1987 | 16111176761 | $2.52 | Shop at ECS Tuning | ||||
| 14 | Hex bolt with washer | M6X16-U2-ZNS3 | 1 | 11/1987 | 07119902913 | Shop at ECS Tuning | ||||
| 15 | Hose | 1 | 11/1987 | 16121180402 | $25.57 | Shop at ECS Tuning | ||||
| 16 | Hose clamp | L42-48 | 1 | 11/1987 | 07129952119 | $1.15 | Shop at ECS Tuning | |||
| 17 | Hose clamp | L32-38 | 1 | 11/1987 | 07129952115 | $1.27 | Shop at ECS Tuning | |||
| 18 | Filler cap without lock | 1 | 11/1987 | 16116750564 | $26.83 | Shop at ECS Tuning | ||||
| 18 | Lockable filler cap | CODE | 1 | 11/1987 | 16121178534 | Shop at ECS Tuning | ||||
| 18 | Lockable filler cap | 1 | 11/1987 | 51212291901 | $61.69 | Shop at ECS Tuning | ||||
| 19 | Rubber seal | 1 | 11/1987 | 16111179680 | $6.70 | Shop at ECS Tuning | ||||
| For vehicles with without catalytic converter |
S199A=No |
|||||||||
| 20 | Leadfree fuel insert | 1 | 11/1987 | 16111180157 | $5.12 | Shop at ECS Tuning | ||||
| 21 | Cage nut | M8 | 1 | 11/1987 | 46512333345 | $0.87 | Shop at ECS Tuning | |||
| 22 | Hex bolt | M8X25-Z2-8.8 | 4 | 11/1987 | 07119904368 | $0.96 | Shop at ECS Tuning | |||
| 22 | Hex bolt | M8X25-8.8-ZNNIV | 4 | 11/1987 | 07119906181 | $0.55 | Shop at ECS Tuning | |||
| 23 | Holder | 1 | 11/1987 | 16111179655 | $3.62 | ENDED | Shop at ECS Tuning | |||
| 24 | Expanding nut | ST 6.3 | 1 | 11/1987 | 64121379221 | $0.60 | Shop at ECS Tuning | |||
| 25 | Hex head screw | ST6,3X19-C-Z2 | 1 | 11/1987 | 07119916967 | $0.29 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
