Expansion tank/tubing for BMW 3 Series E21 320i (1978)

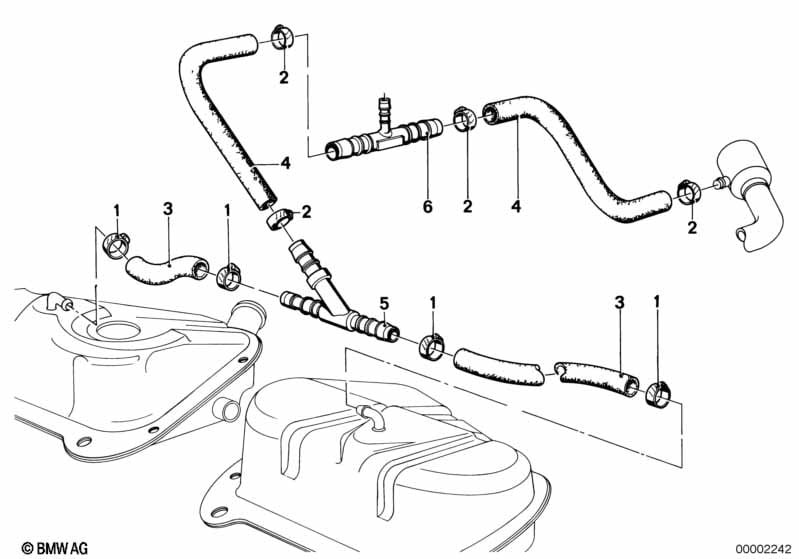

This Expansion tank/tubing technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version Australia |
L810A=Yes |
||||||||
| 01 | Hose clamp | L15-19 | 4 | 07129952107 | $0.93 | Shop at ECS Tuning | ||||
| 02 | Hose clamp | L18-24 | 4 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 03 | Fuel hose | 12X18 | X | 16121176440 | $15.25 | Shop at ECS Tuning | ||||
| 04 | Hose | 14X20X1340 | 1 | 16121177553 | $34.54 | Shop at ECS Tuning | ||||
| 05 | Distribution piece | 1 | 16121115537 | $1.52 | Shop at ECS Tuning | |||||
| 06 | T-Connector | 1 | 16121114173 | $1.54 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320i Expansion tank/tubing?
- This technical diagram illustrates the Expansion tank/tubing within the Fuel Supply group for the 3 Series E21 320i produced during 1978. It provides a detailed exploded view of the components, identifying key parts such as the Hose clamp (Part #07129952107).
- Which models use the hardware listed in this Expansion tank/tubing?
- The hardware and components featured in the Expansion tank/tubing are specific to the 3 Series E21 320i produced during 1978. These technical specifications ensure that parts like the Hose clamp (07129952107) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Expansion tank/tubing assembly?
- Each item in the Expansion tank/tubing corresponds to the numbered list below the illustration. For the 3 Series E21 320i, you can identify the Hose clamp by locating its position on the schematic, which then links to the official BMW part number 07129952107 for the Fuel Supply section.
