Exp.tank/activated Carbon container for BMW 3 Series E21 320i (1978)

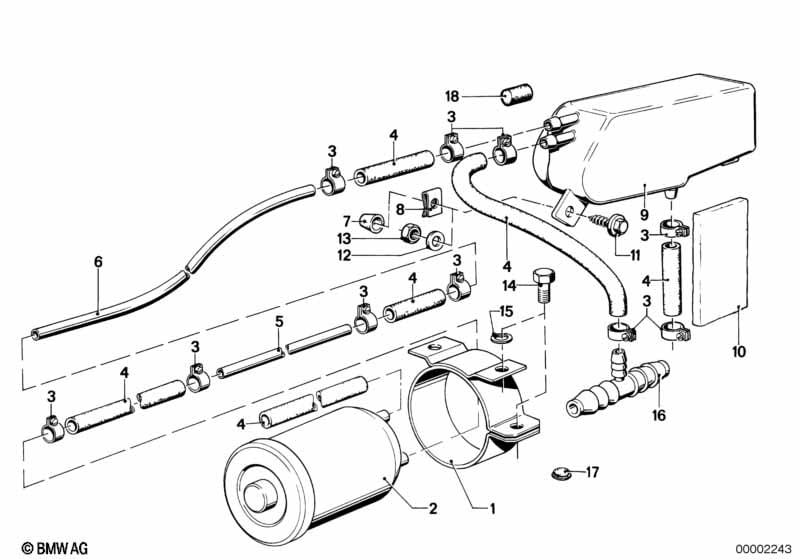

This Exp.tank/activated Carbon container technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version Australia |
L810A=Yes |
||||||||
| 01 | Clamp | 1 | 16121108972 | $4.12 | Shop at ECS Tuning | |||||
| 02 | Activated Charcoal Filter | 1 | 16121108967 | ENDED | Shop at ECS Tuning | |||||
| 03 | Hose clamp | L=9-12 | X | 07129952102 | $1.18 | Shop at ECS Tuning | ||||
| 04 | Fuel hose | 6X11MM | X | 13311272750 | $11.62 | Shop at ECS Tuning | ||||
| 05 | Vent pipe | X | 16121108780 | $2.06 | ENDED | Shop at ECS Tuning | ||||
| 05 | Vent pipe | 1480MM | 1 | 16131150169 | $4.21 | ENDED | Shop at ECS Tuning | |||
| 06 | Pipe | 1 | 09/1977 | 16131120472 | $18.30 | ENDED | Shop at ECS Tuning | |||
| 07 | Cap | 1 | 51135676199 | $0.79 | Shop at ECS Tuning | |||||
| 08 | Body nut | ST6,3-1-ZNS3 | 2 | 07129904231 | Shop at ECS Tuning | |||||
| 09 | Expansion tank | 1 | 09/1976 | 16121118911 | $26.84 | Shop at ECS Tuning | ||||
| 10 | Base | 1 | 51481847976 | $0.36 | ENDED | Shop at ECS Tuning | ||||
| 11 | Hexagon sheet-metal bolt | ST6,3X16-R-U2-Z | 2 | 07119905017 | $0.38 | Shop at ECS Tuning | ||||
| 12 | Washer | A6,4-200HV-ZNS3 | 1 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 13 | Hex nut | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 14 | Hex bolt | M6X16-8.8-ZNS3 | 3 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 15 | Spring washer Black | B6-ZN | 2 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 16 | T-Connector | 1 | 16121114173 | $1.54 | Shop at ECS Tuning | |||||
| 17 | Blind plug | D=11MM | 1 | 41516442164 | $0.30 | Shop at ECS Tuning | ||||
