Exp.tank/activated Carbon container for BMW 5 Series E12 530i

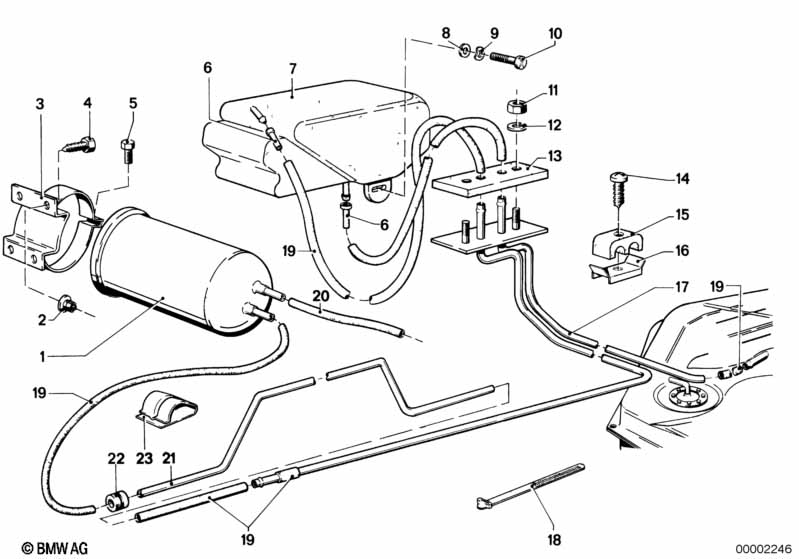

This Exp.tank/activated Carbon container technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 530i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Activated Charcoal Filter | 1 | 08/1976 | 16121108967 | ENDED | Shop at ECS Tuning | ||||
| 02 | Expanding nut | 3,9 | 4 | 08/1976 | 51135680113 | $0.28 | Shop at ECS Tuning | |||
| 03 | Hose clamp | 3 | 08/1976 | 16121115704 | ENDED | Shop at ECS Tuning | ||||
| 04 | Sheet metal screw | ST4,8X16-U1-C- | 4 | 08/1976 | 07119901295 | Shop at ECS Tuning | ||||
| 05 | Hex bolt with washer | M6X16-Z3-2 | 1 | 08/1976 | 07119915021 | $0.47 | Shop at ECS Tuning | |||
| 06 | Reducer | 3 | 08/1976 | 16120480125 | $1.48 | Shop at ECS Tuning | ||||
| 07 | Expansion tank | 1 | 08/1976 | 16111111351 | $87.50 | ENDED | Shop at ECS Tuning | |||
| 08 | Washer | A6,4-200HV-ZNS3 | 1 | 08/1976 | 07119903791 | $0.11 | Shop at ECS Tuning | |||
| 09 | Spring washer Black | B6-ZN | 1 | 08/1976 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 10 | Fillister head screw | M6X16 | 1 | 08/1976 | 07119906423 | $0.18 | Shop at ECS Tuning | |||
| 11 | Self-locking hex nut | M8-8-ZNS3 | 2 | 08/1976 | 07129904002 | $0.18 | Shop at ECS Tuning | |||
| 12 | Washer | 8,4X16X1,6-ZNNV | 2 | 08/1976 | 07119907030 | Shop at ECS Tuning | ||||
| 13 | Gasket | 1 | 08/1976 | 16121112683 | ENDED | Shop at ECS Tuning | ||||
| 14 | Self tapping screw | X | 08/1976 | 34321119239 | $0.27 | Shop at ECS Tuning | ||||
| 15 | Clamping | X | 08/1976 | 16121107928 | $4.00 | Shop at ECS Tuning | ||||
| 16 | Holder | X | 08/1976 | 16121155060 | $1.08 | Shop at ECS Tuning | ||||
| 17 | Vent pipe | 1 | 08/1976 | 16121114203 | $31.21 | ENDED | Shop at ECS Tuning | |||
| 18 | Cable tie | L=292MM/B=4,8MM | X | 08/1976 | 61131377134 | $0.77 | Shop at ECS Tuning | |||
| 19 | Fuel hose | 8X13MM | X | 08/1976 | 16121180409 | $20.43 | Shop at ECS Tuning | |||
| 20 | Fuel hose | 6X11MM | X | 08/1976 | 13311272750 | $11.62 | Shop at ECS Tuning | |||
| 21 | Vent pipe | 3165MM | 1 | 08/1976 | 16121114498 | $13.73 | ENDED | Shop at ECS Tuning | ||
| 22 | Grommet | 1 | 08/1976 | 16124780109 | $1.51 | Shop at ECS Tuning | ||||
| 23 | Cable clamp | D=12MM | 3 | 08/1976 | 61131355345 | $0.82 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
