Activated Charcoal Filter/TUBING for BMW 5 Series E34 525i (1996)

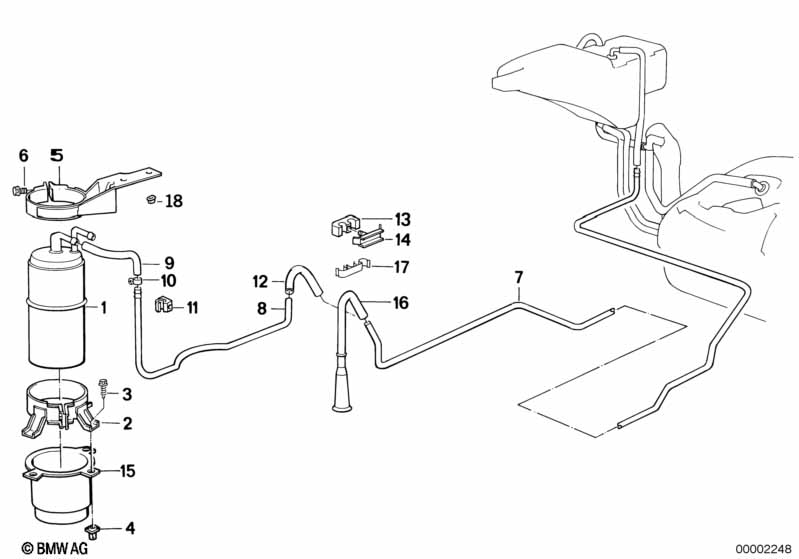

This Activated Charcoal Filter/TUBING technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Activated Charcoal Filter | 1 | 16131180463 | $87.89 | +core | Shop at ECS Tuning | ||||
| 02 | Holder | 1 | 16131179566 | $15.97 | Shop at ECS Tuning | |||||
| 03 | Hex head screw | B6,3X19 | 3 | 35111150944 | $3.40 | ENDED | Shop at ECS Tuning | |||
| 04 | Expanding nut | ST 6.3 | 3 | 64121379221 | $0.60 | Shop at ECS Tuning | ||||
| 06 | Hex bolt with washer | M6X16-U2-ZNS3 | 1 | 07119902913 | Shop at ECS Tuning | |||||
| 07 | Vent pipe | L=4497MM | 1 | 16131179606 | $15.05 | Shop at ECS Tuning | ||||
| 08 | Vent pipe | 1 | 16131181485 | $6.37 | Shop at ECS Tuning | |||||
| 09 | Fuel hose | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 10 | Hose clamp | L12-15 | 5 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 11 | Tubing support | 3 | 16131177494 | $1.60 | Shop at ECS Tuning | |||||
| 12 | Fuel hose | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 13 | Clamping | 2 | 16121107928 | $4.00 | Shop at ECS Tuning | |||||
| 14 | Holder | 2 | 16121155060 | $1.08 | Shop at ECS Tuning | |||||
| 17 | Cable clip | 1 | 16131179124 | $1.22 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
