Expansion tank/tubing for BMW 7 Series E23 732i (1982)

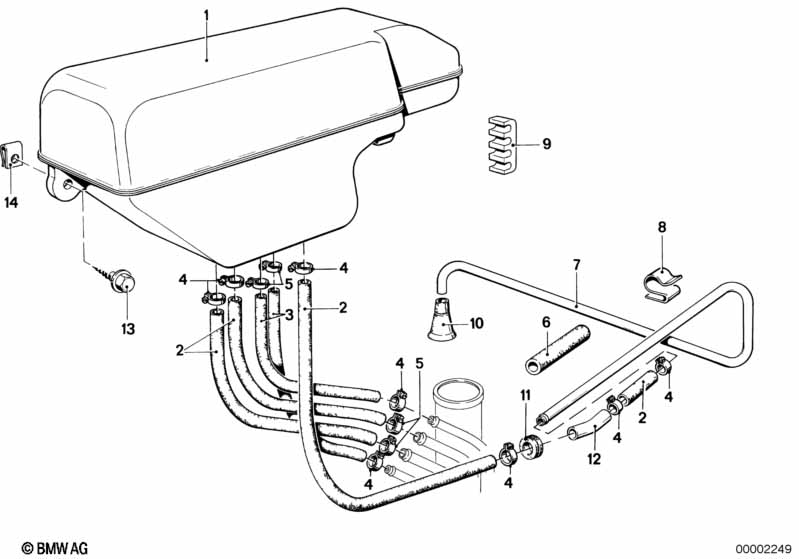

This Expansion tank/tubing technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 732i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Expansion tank | 1 | 16121119988 | $34.39 | Shop at ECS Tuning | |||||
| 02 | Fuel hose | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 03 | Fuel hose | 6X11MM | X | 13311272750 | $11.62 | Shop at ECS Tuning | ||||
| 04 | Hose clamp | L12-15 | X | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| For vehicles with Sweden version |
=Yes |
|||||||||
| 05 | Hose clamp | L=9-12 | 4 | 07129952102 | $1.18 | Shop at ECS Tuning | ||||
| 07 | Vent pipe | 1 | 16121119787 | ENDED | Shop at ECS Tuning | |||||
| 09 | Guide | 1 | 16121120181 | $1.67 | ENDED | Shop at ECS Tuning | ||||
| 10 | Grommet | 1 | 16121120951 | ENDED | Shop at ECS Tuning | |||||
| 11 | Grommet | 5 | 16121119376 | $0.83 | ENDED | Shop at ECS Tuning | ||||
| 13 | Hex head screw | ST6,3X22-C-Z2 | 2 | 07119916971 | $0.30 | Shop at ECS Tuning | ||||
| 13 | Hex head screw with washer | ST-6,3X22 | 2 | 07119901515 | $0.30 | Shop at ECS Tuning | ||||
| 14 | Body nut | ST6,3-3 | 2 | 07129925744 | $0.22 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
