Exp.tank/activated Carbon container for BMW 7 Series E23 733i (1982)

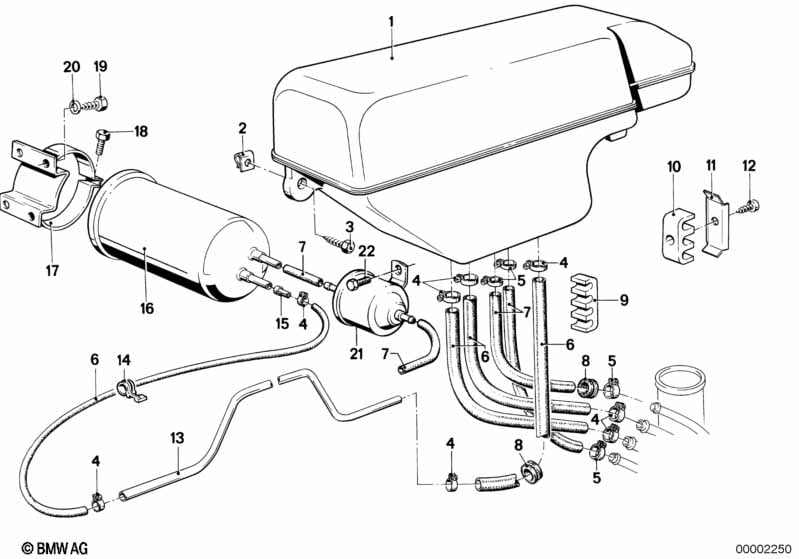

This Exp.tank/activated Carbon container technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Expansion tank | 1 | 16131121620 | $398.41 | ENDED | Shop at ECS Tuning | ||||
| 02 | Body nut | B6,3-6 | 2 | 16111152613 | $0.35 | Shop at ECS Tuning | ||||
| 03 | Hex head screw | ST6,3X22-C-Z2 | 2 | 07119916971 | $0.30 | Shop at ECS Tuning | ||||
| 03 | Hex head screw with washer | ST-6,3X22 | 2 | 07119901515 | $0.30 | Shop at ECS Tuning | ||||
| 04 | Hose clamp | L12-15 | 8 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 05 | Hose clamp | L12-15 | 6 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 06 | Fuel hose | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 07 | Fuel hose | 6X11MM | X | 13311272750 | $11.62 | Shop at ECS Tuning | ||||
| 08 | Grommet | 5 | 16121119376 | $0.83 | ENDED | Shop at ECS Tuning | ||||
| 09 | Guide | 1 | 16121120181 | $1.67 | ENDED | Shop at ECS Tuning | ||||
| 10 | Tubing support | X | 16121118686 | $2.68 | Shop at ECS Tuning | |||||
| 11 | Holder | X | 16121155064 | $1.62 | Shop at ECS Tuning | |||||
| 12 | Self tapping screw | X | 34321119239 | $0.27 | Shop at ECS Tuning | |||||
| 13 | Vent pipe | 1 | 02/1979 | 16121153226 | $12.16 | ENDED | Shop at ECS Tuning | |||
| 14 | Clamp | 12-16MM | 1 | 21521119300 | $0.60 | ENDED | Shop at ECS Tuning | |||
| 15 | Reducer | 1 | 16120480125 | $1.48 | Shop at ECS Tuning | |||||
| 16 | Activated Charcoal Filter | 1 | 16121108967 | ENDED | Shop at ECS Tuning | |||||
| 17 | Clamp | 1 | 16121108972 | $4.12 | Shop at ECS Tuning | |||||
| 18 | Hex bolt | M6X16-8.8-ZNS3 | 1 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 19 | Hex bolt | M6X12-8.8-ZNNIV | 2 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 20 | Spring washer Black | B6-ZN | 2 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 21 | Fuel tank breather valve | 1 | 09/1981 | 11741277566 | $112.79 | ENDED | Shop at ECS Tuning | |||
| 21 | Fuel tank breather valve | 1 | 09/1981 | 11741277566 | $112.79 | ENDED | Shop at ECS Tuning | |||
| 22 | Self tapping screw | 1 | 09/1981 | 34321119239 | $0.27 | Shop at ECS Tuning | ||||
| 22 | Self tapping screw | 1 | 09/1981 | 34321119239 | $0.27 | Shop at ECS Tuning |
