Activated Charcoal Filter/TUBING for BMW 3 Series E30 320i (1991)

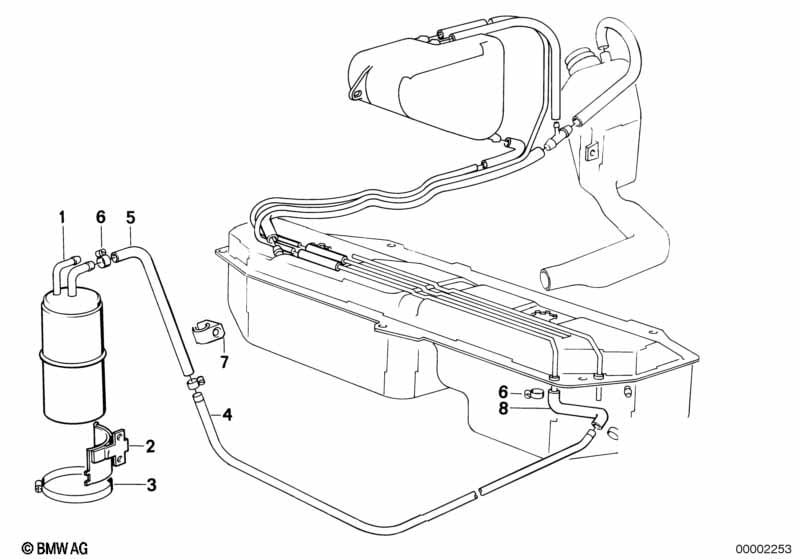

This Activated Charcoal Filter/TUBING technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with without catalytic converter |
S199A=No |
||||||||
| 01 | Activated Charcoal Filter | 1 | 16131180463 | $87.89 | +core | Shop at ECS Tuning | ||||
| 02 | Bracket activated Carbon container | 1 | 16131179399 | $6.36 | ENDED | Shop at ECS Tuning | ||||
| 03 | Hose clamp | L77-84 | 1 | 07129952131 | $1.78 | Shop at ECS Tuning | ||||
| 04 | Vent pipe | 8X0,7X2015 | 1 | 16131179784 | $14.71 | Shop at ECS Tuning | ||||
| 05 | Fuel hose | 561MM-920MM | 1 | 13311722565 | $45.38 | Shop at ECS Tuning | ||||
| 06 | Hose clamp | L12-15 | 4 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 07 | Clip | D=8MM | 7 | 16131177490 | $1.62 | ENDED | Shop at ECS Tuning | |||
| 08 | Hose | 1 | 16131179725 | $2.80 | ENDED | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
