Expansion tank/tubing for BMW 5 Series E28 535i (1987)
This Expansion tank/tubing technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Expansion tank | 1 | 16131152375 | $20.09 | Shop at ECS Tuning | |||||
| 02 | Hex head screw | ST6,3X19-C-Z2 | 1 | 07119916967 | $0.29 | Shop at ECS Tuning | ||||
| 03 | Body nut | ST6,3-2-ZNS3 | 1 | 07129904232 | $0.16 | Shop at ECS Tuning | ||||
| 04 | Fuel hose | 6X11MM | X | 13311272750 | $11.62 | Shop at ECS Tuning | ||||
| 05 | Grommet | 3 | 16131152490 | $8.97 | Shop at ECS Tuning | |||||
| 06 | Grommet | 3 | 16121119376 | $0.83 | ENDED | Shop at ECS Tuning | ||||
| 07 | Hose clamp | L=9-12 | 2 | 07129952102 | $1.18 | Shop at ECS Tuning | ||||
| 08 | Vent pipe | 1 | 16131152524 | $12.45 | ENDED | Shop at ECS Tuning | ||||
| 09 | Cable clamp | D=6MM | 1 | 63121364431 | $0.93 | Shop at ECS Tuning | ||||
| 10 | Clamp | X | 16131152489 | $0.67 | ENDED | Shop at ECS Tuning | ||||
| 11 | Grommet | 1 | 16124780109 | $1.51 | Shop at ECS Tuning | |||||
| 12 | Vent hose | 1 | 16131152495 | $5.64 | ENDED | Shop at ECS Tuning | ||||
| 13 | Hose clamp | 1 | 16131152916 | $0.56 | Shop at ECS Tuning | |||||
| 14 | Washer | 9X4,3X0,8-200HV | 1 | 07119904205 | $0.07 | Shop at ECS Tuning | ||||
| 15 | Self tapping screw | 1 | 34321119239 | $0.27 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 535i Expansion tank/tubing?

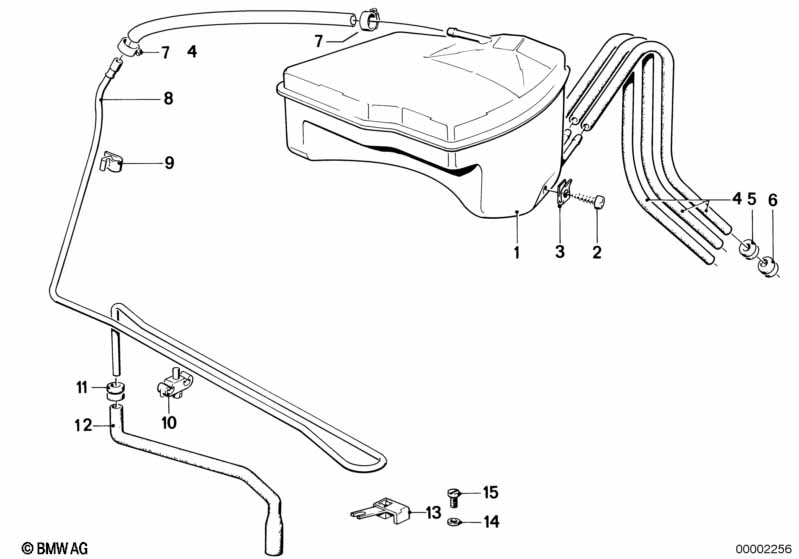

- This technical diagram illustrates the Expansion tank/tubing within the Fuel Supply group for the 5 Series E28 535i produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Expansion tank (Part #16131152375).
- Which models use the hardware listed in this Expansion tank/tubing?
- The hardware and components featured in the Expansion tank/tubing are specific to the 5 Series E28 535i produced during 1987. These technical specifications ensure that parts like the Expansion tank (16131152375) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Expansion tank/tubing assembly?
- Each item in the Expansion tank/tubing corresponds to the numbered list below the illustration. For the 5 Series E28 535i, you can identify the Expansion tank by locating its position on the schematic, which then links to the official BMW part number 16131152375 for the Fuel Supply section.
