Exp.tank/activated Carbon container for BMW 5 Series E28 528e (1987)

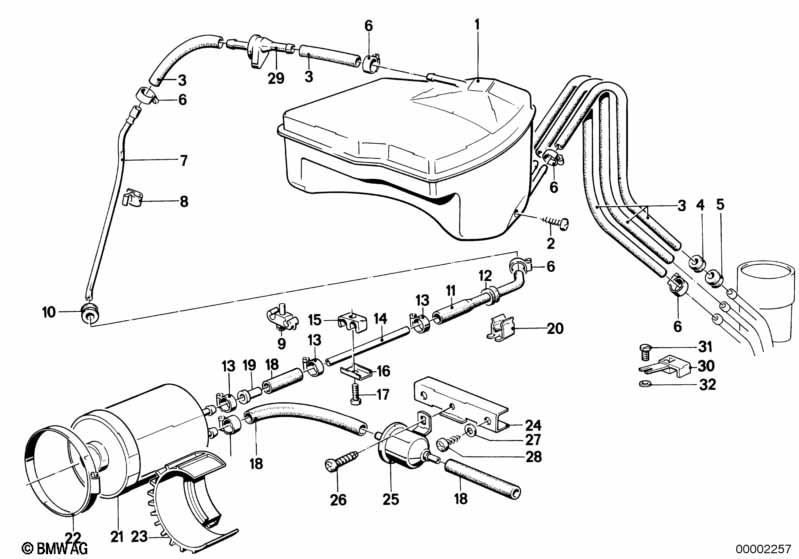

This Exp.tank/activated Carbon container technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 528e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Expansion tank | 1 | 16131152375 | $20.09 | Shop at ECS Tuning | |||||
| 02 | Hex head screw | ST6,3X19-C-Z2 | 1 | 07119916967 | $0.29 | Shop at ECS Tuning | ||||
| 03 | Fuel hose | 6X11MM | X | 13311272750 | $11.62 | Shop at ECS Tuning | ||||
| 04 | Grommet | 3 | 16131152490 | $8.97 | Shop at ECS Tuning | |||||
| 05 | Grommet | 3 | 16121119376 | $0.83 | ENDED | Shop at ECS Tuning | ||||
| 06 | Hose clamp | L=9-12 | 9 | 07129952102 | $1.18 | Shop at ECS Tuning | ||||
| 07 | Vent pipe | 1 | 16131152524 | $12.45 | ENDED | Shop at ECS Tuning | ||||
| 08 | Cable clamp | D=6MM | 1 | 63121364431 | $0.93 | Shop at ECS Tuning | ||||
| 09 | Clamp | 2 | 16131152489 | $0.67 | ENDED | Shop at ECS Tuning | ||||
| 10 | Grommet | 2 | 16124780109 | $1.51 | Shop at ECS Tuning | |||||
| 11 | Hose | 1 | 16131152517 | $3.54 | ENDED | Shop at ECS Tuning | ||||
| 12 | Rubber grommet | 2 | 34321118503 | ENDED | Shop at ECS Tuning | |||||
| 13 | Hose clamp | L12-15 | 5 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 14 | Pipe | L=2574MM | 1 | 16131152903 | $17.11 | ENDED | Shop at ECS Tuning | |||
| 15 | Clamping | 9 | 16121107928 | $4.00 | Shop at ECS Tuning | |||||
| 16 | Holder | 9 | 16121155060 | $1.08 | Shop at ECS Tuning | |||||
| 17 | Self tapping screw | 9 | 34321119239 | $0.27 | Shop at ECS Tuning | |||||
| 18 | Fuel hose | 6X11MM | X | 13311272750 | $11.62 | Shop at ECS Tuning | ||||
| 19 | Reducer | 1 | 16120480125 | $1.48 | Shop at ECS Tuning | |||||
| 20 | Bracket breather pipe | 2 | 16131177583 | $1.08 | Shop at ECS Tuning | |||||
| 21 | Activated Charcoal Filter | 1 | 09/1987 | 16131180463 | $87.89 | +core | Shop at ECS Tuning | |||
| 22 | Hose clamp | L89-96 | 1 | 07129952135 | $2.18 | Shop at ECS Tuning | ||||
| 23 | Bracket activated Carbon container | 1 | 09/1987 | 16131179483 | ENDED | Shop at ECS Tuning | ||||
| 25 | non-return valve | 1 | 06/1984 | 11631707770 | $14.87 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
