Expansion tank/tubing for BMW 5 Series E34 525td (1995)

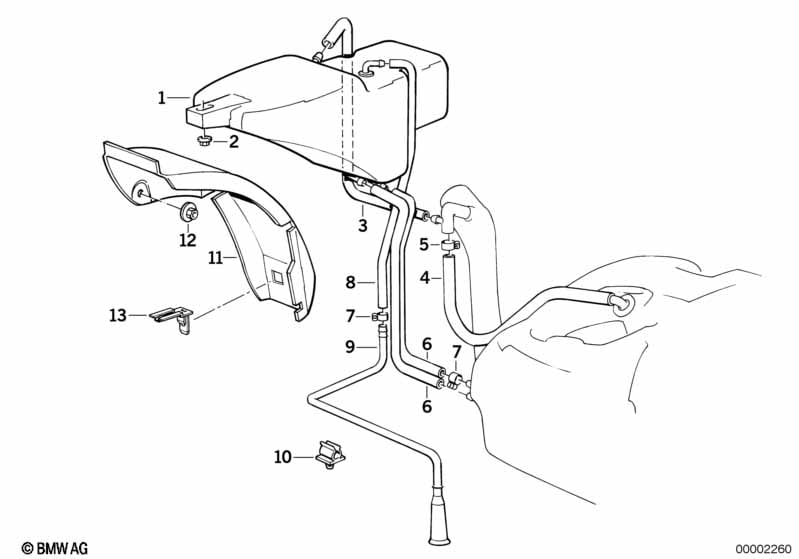

This Expansion tank/tubing technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Expansion tank | 1 | 16131180938 | ENDED | Shop at ECS Tuning | |||||
| 02 | Plastic nut for coarse threaded pin | M6 | 1 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 03 | Hose | 10X16MM | X | 16121177108 | $16.37 | Shop at ECS Tuning | ||||
| 04 | Hose | 1 | 16111177874 | $26.57 | Shop at ECS Tuning | |||||
| 05 | Hose clamp | L18-24 | 2 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 06 | Fuel hose | 6X11MM | X | 13311272750 | $11.62 | Shop at ECS Tuning | ||||
| 07 | Hose clamp | L=9-12 | X | 07129952102 | $1.18 | Shop at ECS Tuning | ||||
| 08 | Hose | 1 | 16131179180 | $9.02 | Shop at ECS Tuning | |||||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 09 | Vent pipe | 1 | 16131179633 | $9.71 | Shop at ECS Tuning | |||||
| 10 | Clamp | 1 | 16131179836 | $0.53 | Shop at ECS Tuning | |||||
| 11 | Stone-chip guard | 1 | 16121181379 | $31.63 | Shop at ECS Tuning | |||||
| 12 | Plastic nut | 4 | 51711958025 | $0.26 | Shop at ECS Tuning | |||||
| 13 | Clamp | 1 | 51711944904 | $0.85 | ENDED | Shop at ECS Tuning | ||||
