Exp.tank/activated Carbon container for BMW 3 Series E30 320i (1990)

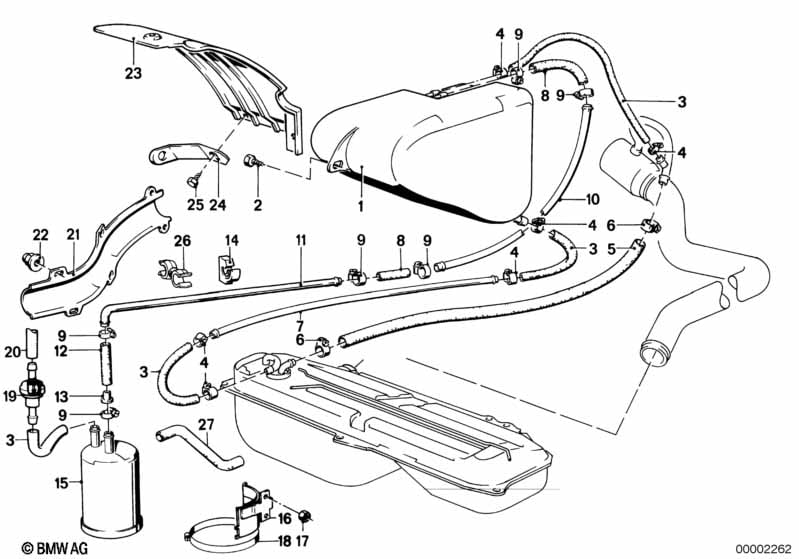

This Exp.tank/activated Carbon container technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Expansion tank | 1 | 16131178014 | $128.85 | Shop at ECS Tuning | |||||
| 02 | Hex head screw | ST6,3X19-C-Z2 | 1 | 07119916967 | $0.29 | Shop at ECS Tuning | ||||
| 03 | Fuel hose | 6X11MM | X | 13311272750 | $11.62 | Shop at ECS Tuning | ||||
| 04 | Hose clamp | L=9-12 | 3 | 07129952102 | $1.18 | Shop at ECS Tuning | ||||
| 05 | Hose | 14X20X1340 | 1 | 16121177553 | $34.54 | Shop at ECS Tuning | ||||
| 06 | Hose clamp | L18-24 | 2 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 07 | Pipe | 6X0,7X1655 | 1 | 16131178821 | $6.11 | Shop at ECS Tuning | ||||
| 08 | Fuel hose | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 09 | Hose clamp | L12-15 | 6 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 10 | Pipe | 8X0,7X1805 | 1 | 16131178475 | $67.02 | +core | Shop at ECS Tuning | |||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 11 | Vent pipe | 8X0,7X2015 | 1 | 09/1987 | 16131179784 | $14.71 | Shop at ECS Tuning | |||
| 12 | Fuel hose | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 13 | Reducer | 1 | 16120480125 | $1.48 | Shop at ECS Tuning | |||||
| 14 | Clip | D=8MM | 5 | 16131177490 | $1.62 | ENDED | Shop at ECS Tuning | |||
| 15 | Activated Charcoal Filter | 1 | 09/1987 | 16131180463 | $87.89 | +core | Shop at ECS Tuning | |||
| 16 | Bracket activated Carbon container | 1 | 09/1987 | 16131179399 | $6.36 | ENDED | Shop at ECS Tuning | |||
| 17 | Hex nut with plate | M6 | 1 | 07147134319 | $1.05 | Shop at ECS Tuning | ||||
| 18 | Hose clamp | L77-84 | 1 | 07129952131 | $1.78 | Shop at ECS Tuning | ||||
| 20 | Fuel hose | 32MM-210MM | 1 | 13311288284 | $17.10 | Shop at ECS Tuning | ||||
| 21 | Cover | 1 | 09/1983 | 16131179011 | $43.68 | Shop at ECS Tuning | ||||
| 22 | Plastic nut for coarse threaded pin | M6 | 6 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 23 | Protection plate | 1 | 16131179779 | $9.20 | Shop at ECS Tuning | |||||
| 25 | Hex head screw | ST4,2X16-C-Z2 | 3 | 01/1993 | 07119916922 | $0.11 | ENDED | Shop at ECS Tuning | ||
| 25 | Sheet metal screw | 4,2X16 | 3 | 07119904265 | Shop at ECS Tuning | |||||
| 26 | Hose clamp | 1 | 13311287351 | $1.73 | Shop at ECS Tuning | |||||
| 27 | Hose | 1 | 09/1987 | 16131179725 | $2.80 | ENDED | Shop at ECS Tuning | |||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
