Fuel supply/pump/filter for BMW 3 Series E30 318is (1990)

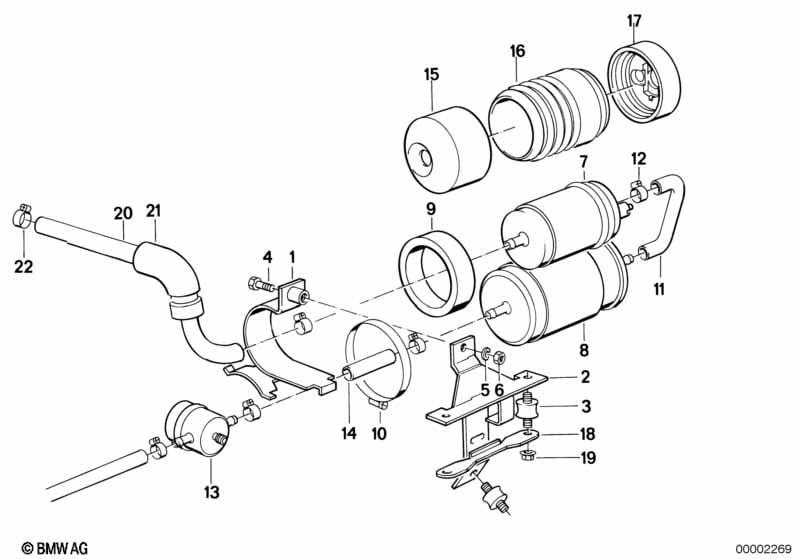

This Fuel supply/pump/filter technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with without catalytic converter |
S199A=No |
||||||||
| 01 | Braket fuel pump | 1 | 16121179377 | $9.95 | ENDED | Shop at ECS Tuning | ||||
| 02 | Holder | 1 | 16121179378 | $13.59 | ENDED | Shop at ECS Tuning | ||||
| 03 | Rubber Mounting | 3 | 16121177892 | $12.99 | Shop at ECS Tuning | |||||
| 03 | Rubber Mounting | 3 | 61211243530 | $13.76 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M6X25 | 1 | 07119913589 | $0.62 | Shop at ECS Tuning | ||||
| 05 | Spring washer Black | B6-ZN | 4 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 06 | Hex nut | M6-8-ZNNIV SI | 4 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 08 | Fuel filter | 1 | 13321268231 | Shop at ECS Tuning | ||||||
| 09 | Rubber Ring | 1 | 16121152361 | $2.70 | Shop at ECS Tuning | |||||
| 10 | Hose clamp | L71-78 | 1 | 07129952129 | $1.48 | Shop at ECS Tuning | ||||
| 12 | Hose clamp | L12-15 | 4 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 18 | Securing plate | 1 | 16121178964 | $5.17 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
