Fuel pump for BMW 3 Series E21 320i (1979)

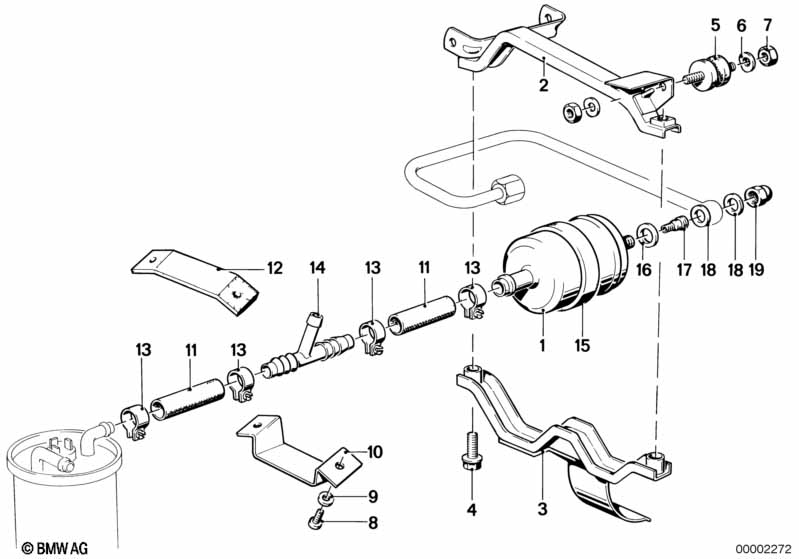

This Fuel pump technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel pump | 1 | 09/1978 | 16121150201 | $329.89 | Shop at ECS Tuning | ||||
| 02 | Carrier | 1 | 09/1978 | 16121150099 | $34.08 | ENDED | Shop at ECS Tuning | |||
| 03 | Holder | 1 | 09/1978 | 16121150435 | ENDED | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M6X20-Z3-2 | 2 | 09/1978 | 07119915032 | ENDED | Shop at ECS Tuning | |||
| 05 | Rubber Mounting | 3 | 09/1978 | 16121177891 | $10.82 | Shop at ECS Tuning | ||||
| 06 | Spring washer Black | B6-ZN | 6 | 09/1978 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 07 | Hex nut | M6-8-ZNNIV SI | 6 | 09/1978 | 07119905543 | $0.38 | Shop at ECS Tuning | |||
| 08 | Self tapping screw | 2 | 09/1978 | 34321119239 | $0.27 | Shop at ECS Tuning | ||||
| 09 | Washer | 4-200 HV-ZNS3 | 2 | 09/1978 | 07119904207 | Shop at ECS Tuning | ||||
| 10 | Bow | 1 | 09/1978 | 16121116321 | $2.59 | ENDED | Shop at ECS Tuning | |||
| 11 | Fuel hose | 12X18 | X | 09/1978 | 16121176440 | $15.25 | Shop at ECS Tuning | |||
| 12 | Base | 2 | 09/1978 | 16121116322 | $0.66 | Shop at ECS Tuning | ||||
| 13 | Hose clamp | L15-19 | 4 | 09/1978 | 07129952107 | $0.93 | Shop at ECS Tuning | |||
| 14 | Distribution piece | 1 | 09/1978 | 16121118893 | $37.59 | ENDED | Shop at ECS Tuning | |||
| 15 | Rubber Mounting | 1 | 09/1978 | 16121150105 | $4.80 | ENDED | Shop at ECS Tuning | |||
| 16 | Gasket ring | 1 | 09/1978 | 16121150561 | $0.88 | ENDED | Shop at ECS Tuning | |||
| 17 | non-return valve | 1 | 09/1978 | 16121153260 | $41.47 | Shop at ECS Tuning | ||||
| 18 | Gasket ring | A12X15-CU | 2 | 09/1978 | 07119963129 | $0.11 | Shop at ECS Tuning | |||
| 19 | Cap nut | M12X1,5 | 1 | 09/1978 | 07119924242 | $2.33 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
