Fuel supply/filter for BMW 3 Series E21 323i (1979)

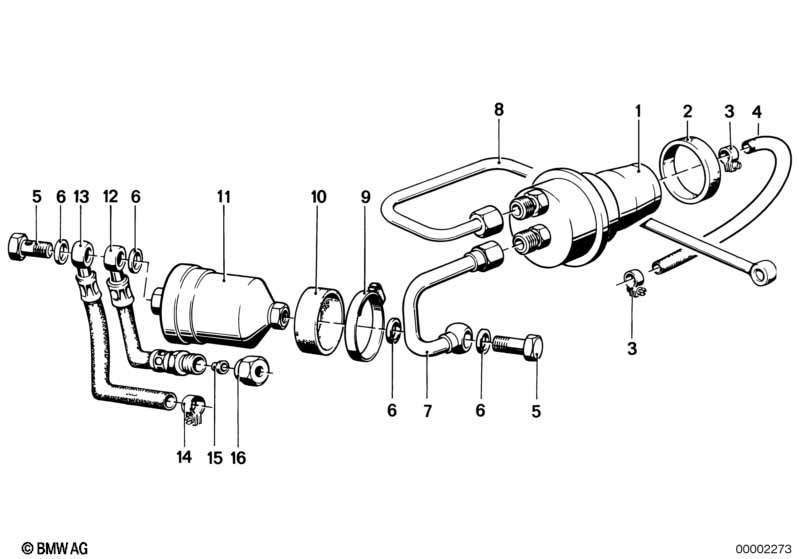

This Fuel supply/filter technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|

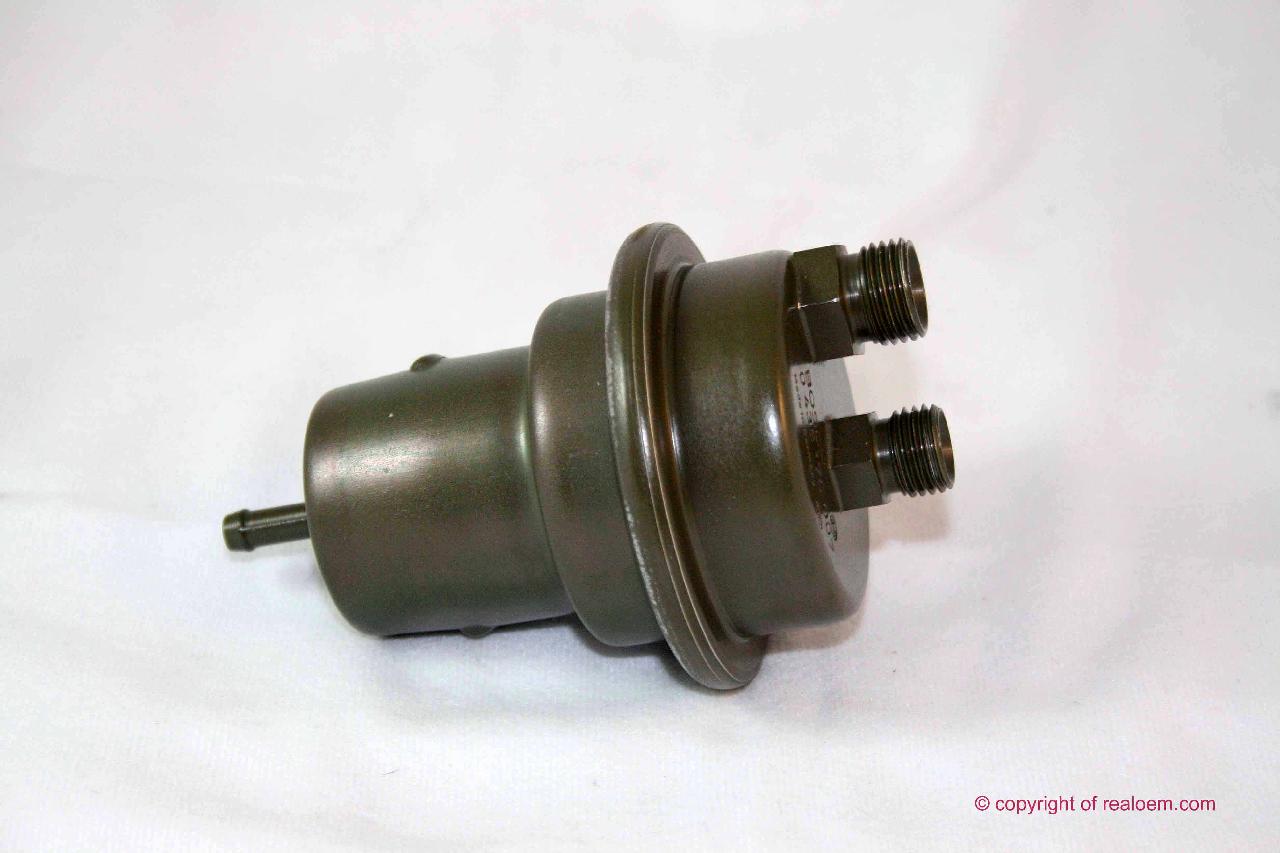

| 01 | Fuel accumulator | 1 | 08/1978 | 08/1979 | 16121120432 | $218.47 | ENDED | Shop at ECS Tuning | ||
| 01 | Fuel accumulator | 1 | 08/1978 | 08/1979 | 16121118899 | $122.07 | Shop at ECS Tuning | |||
| 02 | Rubber Mounting | 1 | 08/1978 | 08/1979 | 16121150104 | $5.08 | ENDED | Shop at ECS Tuning | ||
| 03 | Hose clamp | L=9-12 | 2 | 08/1978 | 08/1979 | 07129952102 | $1.18 | Shop at ECS Tuning | ||
| 04 | Fuel hose | 6X11MM | X | 08/1978 | 08/1979 | 13311272750 | $11.62 | Shop at ECS Tuning | ||
| 05 | Hollow bolt | M14X1,5X26 | 2 | 08/1978 | 08/1979 | 32416852469 | Shop at ECS Tuning | |||
| 06 | Gasket ring | A14X18-CU | 4 | 08/1978 | 08/1979 | 07119963201 | $0.18 | Shop at ECS Tuning | ||
| 07 | Fuel pipe | 1 | 08/1978 | 08/1979 | 16121150495 | $62.70 | Shop at ECS Tuning | |||
| 08 | Fuel pipe | 1 | 08/1978 | 08/1979 | 16121151474 | $28.98 | Shop at ECS Tuning | |||
| 09 | Hose clamp | L71-78 | 1 | 08/1978 | 08/1979 | 07129952129 | $1.48 | Shop at ECS Tuning | ||
| 10 | Rubber Mounting | 1 | 08/1978 | 08/1979 | 16121150106 | $2.18 | Shop at ECS Tuning | |||
| 11 | Fuel filter | 1 | 08/1978 | 08/1979 | 13321270039 | $45.42 | ENDED | Shop at ECS Tuning | ||
| 11 | Fuel filter | 1 | 08/1978 | 08/1979 | 13321269244 | $34.88 | ENDED | Shop at ECS Tuning | ||
| 13 | Fuel pipe | 1 | 08/1978 | 08/1979 | 16121121086 | $71.68 | ENDED | Shop at ECS Tuning | ||
| 14 | Hose clamp | L12-15 | 1 | 08/1978 | 08/1979 | 07129952104 | $1.18 | Shop at ECS Tuning |
