Fuel Supply for BMW 5 Series E12 525 (1981)

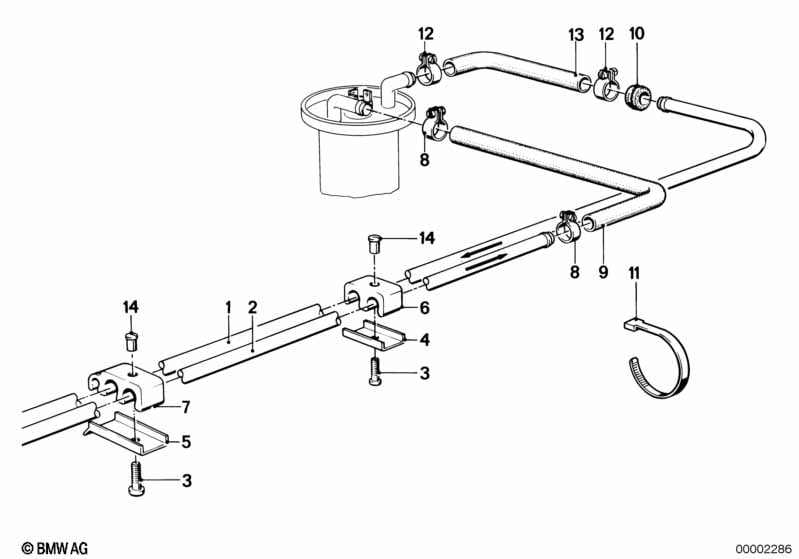

This Fuel Supply technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 525. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Feed line | L=3740MM | 1 | 09/1979 | 16121151298 | $30.15 | Shop at ECS Tuning | |||
| 02 | Return pipe | 1 | 09/1979 | 16121151301 | $35.29 | ENDED | Shop at ECS Tuning | |||
| 03 | Self tapping screw | X | 34321119239 | $0.27 | Shop at ECS Tuning | |||||
| 04 | Holder | X | 16121155060 | $1.08 | Shop at ECS Tuning | |||||
| 05 | Holder | X | 16121155064 | $1.62 | Shop at ECS Tuning | |||||
| 06 | Clamping | X | 16121107928 | $4.00 | Shop at ECS Tuning | |||||
| 07 | Clamp | 9 | 16121177005 | $0.93 | Shop at ECS Tuning | |||||
| 08 | Hose clamp | L12-15 | 2 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 09 | Fuel hose | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 10 | Rubber grommet | 1 | 16121105846 | $10.57 | Shop at ECS Tuning | |||||
| 11 | Cable tie | L=292MM/B=4,8MM | 1 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 12 | Hose clamp | L12-15 | 2 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 13 | Fuel hose | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 14 | Bush | X | 41121877025 | $0.20 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
