Fuel Supply for BMW 5 Series E28 520i (1988)

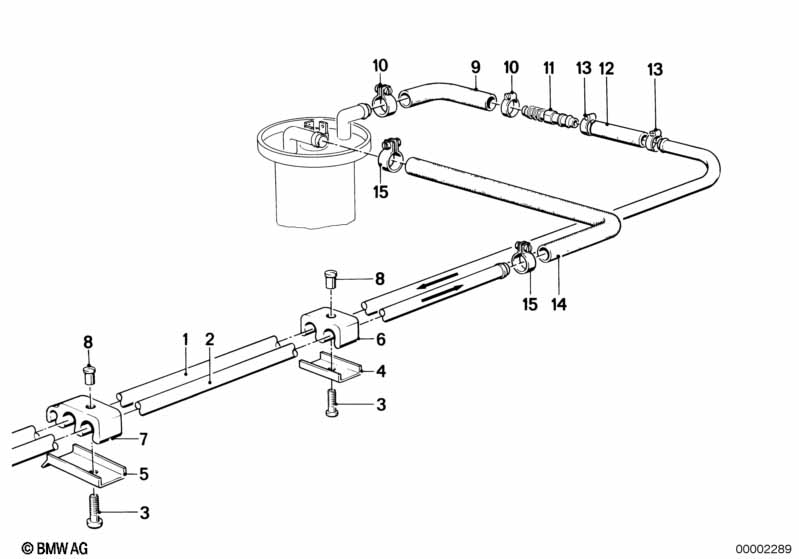

This Fuel Supply technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Feed line | 1 | 16122908698 | Shop at ECS Tuning | ||||||
| 01 | Return pipe | 1 | 16122908699 | Shop at ECS Tuning | ||||||
| 03 | Self tapping screw | X | 34321119239 | $0.27 | Shop at ECS Tuning | |||||
| 04 | Holder | X | 16121155060 | $1.08 | Shop at ECS Tuning | |||||
| 05 | Holder | X | 16121155064 | $1.62 | Shop at ECS Tuning | |||||
| 06 | Clamping | X | 16121107928 | $4.00 | Shop at ECS Tuning | |||||
| 07 | Tubing support | X | 16121118686 | $2.68 | Shop at ECS Tuning | |||||
| 08 | Bush | X | 41121877025 | $0.20 | ENDED | Shop at ECS Tuning | ||||
| 14 | Fuel hose | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 15 | Hose clamp | L12-15 | 2 | 07129952104 | $1.18 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 520i Fuel Supply?
- This technical diagram illustrates the Fuel Supply within the Fuel Supply group for the 5 Series E28 520i produced during 1988. It provides a detailed exploded view of the components, identifying key parts such as the Feed line (Part #16122908698).
- Which models use the hardware listed in this Fuel Supply?
- The hardware and components featured in the Fuel Supply are specific to the 5 Series E28 520i produced during 1988. These technical specifications ensure that parts like the Feed line (16122908698) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuel Supply assembly?
- Each item in the Fuel Supply corresponds to the numbered list below the illustration. For the 5 Series E28 520i, you can identify the Feed line by locating its position on the schematic, which then links to the official BMW part number 16122908698 for the Fuel Supply section.
