Fuel Supply for BMW 7 Series E23 735i (1982)

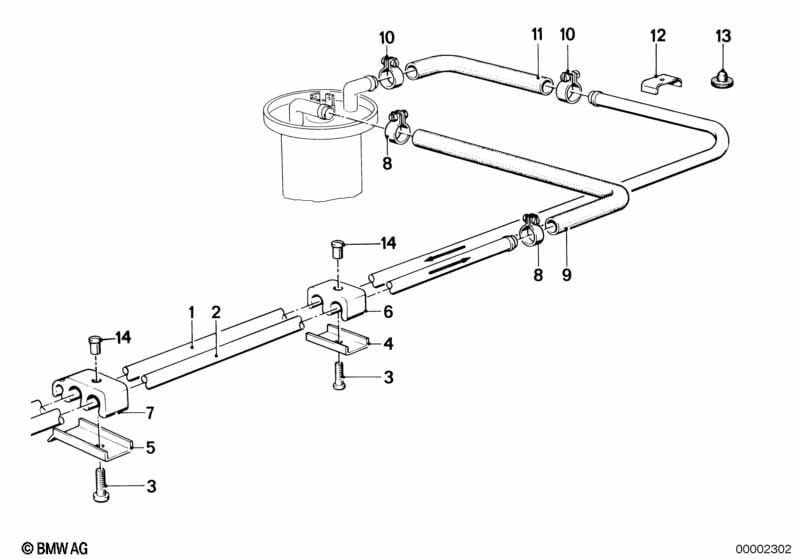

This Fuel Supply technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Feed line | 1 | 09/1981 | 16121153171 | $33.93 | ENDED | Shop at ECS Tuning | |||
| 02 | Return pipe | 1 | 09/1981 | 16121153225 | $33.93 | ENDED | Shop at ECS Tuning | |||
| 03 | Self tapping screw | X | 34321119239 | $0.27 | Shop at ECS Tuning | |||||
| 04 | Holder | X | 16121155060 | $1.08 | Shop at ECS Tuning | |||||
| 05 | Holder | 1 | 16121155064 | $1.62 | Shop at ECS Tuning | |||||
| 06 | Clamping | X | 16121107928 | $4.00 | Shop at ECS Tuning | |||||
| 07 | Tubing support | 1 | 16121118686 | $2.68 | Shop at ECS Tuning | |||||
| 08 | Hose clamp | L12-15 | 2 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 09 | Fuel hose | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 12 | Clamp | 1 | 16121151024 | $0.38 | ENDED | Shop at ECS Tuning | ||||
| 13 | Grommet | 1 | 51131851587 | $0.42 | ENDED | Shop at ECS Tuning | ||||
| 14 | Bush | X | 41121877025 | $0.20 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
