Fuel pump/fuel filter for BMW 7 Series E23 728i (1983)

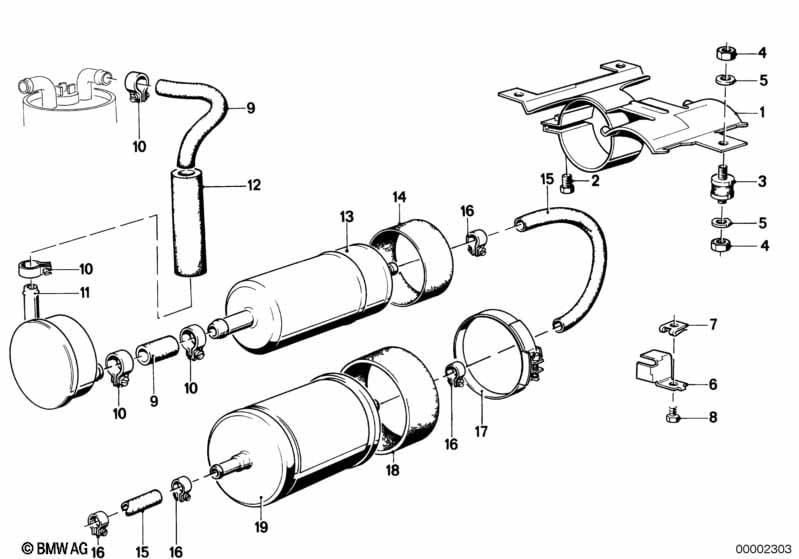

This Fuel pump/fuel filter technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Braket fuel pump | 1 | 09/1981 | 16121153125 | $27.76 | ENDED | Shop at ECS Tuning | |||
| 02 | Hex bolt with washer | M6X16-U1-8.8 | 1 | 09/1981 | 07119904524 | $0.25 | Shop at ECS Tuning | |||
| 03 | Rubber Mounting | 3 | 09/1981 | 16121177891 | $10.82 | Shop at ECS Tuning | ||||
| 04 | Hex nut | M6-8-ZNNIV SI | 6 | 09/1981 | 07119905543 | $0.38 | Shop at ECS Tuning | |||
| 05 | Spring washer Black | B6-ZN | 6 | 09/1981 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 06 | Securing plate | 1 | 09/1981 | 16121153278 | $0.95 | Shop at ECS Tuning | ||||
| 07 | Body nut | ST 4,8-4-ZNS3 | 1 | 09/1981 | 07129904224 | $0.11 | Shop at ECS Tuning | |||
| 08 | Body nut | ST 4,8-6-ZNS3 | 1 | 09/1981 | 07129904225 | $0.16 | Shop at ECS Tuning | |||
| 09 | Fuel hose | 12X18 | X | 09/1981 | 16121176440 | $15.25 | Shop at ECS Tuning | |||
| 10 | Hose clamp | L15-19 | 4 | 09/1981 | 07129952107 | $0.93 | Shop at ECS Tuning | |||
| 11 | Damping unit | 1 | 09/1981 | 16121152962 | $27.37 | ENDED | Shop at ECS Tuning | |||
| 12 | Protective hose | X | 09/1981 | 16121118812 | $26.71 | ENDED | Shop at ECS Tuning | |||
| 13 | Fuel pump | 1 | 09/1981 | 16141178751 | $387.81 | Shop at ECS Tuning | ||||
| For vehicles with National version Australia and Saudi Arabia version |
L810A=Yes =Yes |
|||||||||
| 13 | Fuel pump | 1 | 09/1981 | 16141179232 | $372.11 | Shop at ECS Tuning | ||||
| ONLY IN CONJUNCTION WITH PRE-SUPPLY PUMP | ||||||||||
| 14 | Rubber Mounting | 1 | 09/1981 | 16121153011 | $1.05 | Shop at ECS Tuning | ||||
| 15 | Fuel hose | 8X13MM | X | 09/1981 | 16121180409 | $20.43 | Shop at ECS Tuning | |||
| 16 | Hose clamp | L12-15 | 4 | 09/1981 | 07129952104 | $1.18 | Shop at ECS Tuning | |||
| 17 | Hose clamp | L77-84 | 1 | 09/1981 | 07129952131 | $1.78 | Shop at ECS Tuning | |||
| 18 | Rubber Mounting | 1 | 09/1981 | 16121150106 | $2.18 | Shop at ECS Tuning | ||||
| 19 | Fuel filter | 1 | 09/1981 | 13321268231 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
