Metal fuel tank for BMW 5 Series E34 M5 (1995)

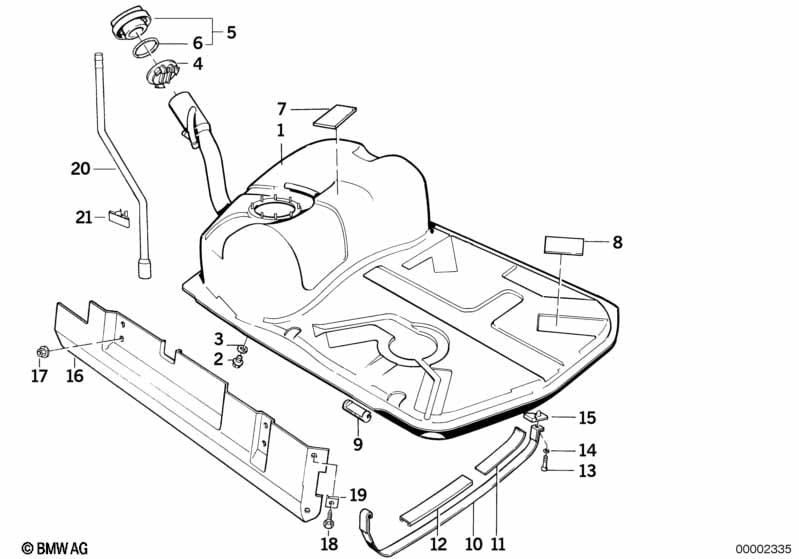

This Metal fuel tank technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Metal fuel tank | 90L | 1 | 16111179978 | $465.94 | Shop at ECS Tuning | ||||
| 02 | Screw plug | M10X1-ST-ZNS3 | 1 | 07119904393 | $1.89 | Shop at ECS Tuning | ||||
| 03 | Gasket ring | A10X13,5-CU | 1 | 07119963072 | $0.11 | Shop at ECS Tuning | ||||
| 04 | Leadfree fuel insert | 1 | 16111180157 | $5.12 | Shop at ECS Tuning | |||||
| 05 | Filler cap without lock | 1 | 16111184718 | $11.65 | Shop at ECS Tuning | |||||
| 06 | Rubber seal | 1 | 16111179680 | $6.70 | Shop at ECS Tuning | |||||
| 07 | Base | 80X50X10 | 4 | 16111178676 | $1.08 | ENDED | Shop at ECS Tuning | |||
| 08 | Base | 90X55X7 | 4 | 16111177873 | $7.52 | Shop at ECS Tuning | ||||
| 09 | Edge protection | 2 | 16111179038 | $5.00 | Shop at ECS Tuning | |||||
| 10 | Tension strap right | 90L | 1 | 16111179161 | $21.02 | Shop at ECS Tuning | ||||
| 10 | Tension strap left | 90L | 1 | 16111179162 | $21.02 | Shop at ECS Tuning | ||||
| 11 | Base | 660MM | 2 | 16111178667 | $7.52 | Shop at ECS Tuning | ||||
| 11 | Base | 590MM | 2 | 16111178775 | $7.52 | ENDED | Shop at ECS Tuning | |||
| 12 | Base | 460MM | 2 | 16111178743 | $3.23 | Shop at ECS Tuning | ||||
| 13 | Fillister-head screw | M8X40-8.8-ZNS3 | 2 | 07119902984 | $1.93 | Shop at ECS Tuning | ||||
| 14 | Washer | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 15 | Spacer | 2 | 16111179032 | $1.95 | Shop at ECS Tuning | |||||
| 16 | Heat resistant plate | ALU | 1 | 16111179433 | $19.35 | ENDED | Shop at ECS Tuning | |||
| 17 | Combination nut | 4 | 07147305178 | Shop at ECS Tuning | ||||||
| 18 | Fillister head screw | M5X10 | 2 | 07149149399 | $0.25 | Shop at ECS Tuning | ||||
| 19 | Body nut | ST 4,8-4-ZNS3 | 2 | 07129904224 | $0.11 | Shop at ECS Tuning | ||||
| 20 | Pipe | 435 | 1 | 16131179986 | $7.93 | Shop at ECS Tuning | ||||
| 21 | Clamp | 1 | 16131179256 | $1.15 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 M5 Metal fuel tank?
- This technical diagram illustrates the Metal fuel tank within the Fuel Supply group for the 5 Series E34 M5 produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Metal fuel tank (Part #16111179978).
- Which models use the hardware listed in this Metal fuel tank?
- The hardware and components featured in the Metal fuel tank are specific to the 5 Series E34 M5 produced during 1995. These technical specifications ensure that parts like the Metal fuel tank (16111179978) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Metal fuel tank assembly?
- Each item in the Metal fuel tank corresponds to the numbered list below the illustration. For the 5 Series E34 M5, you can identify the Metal fuel tank by locating its position on the schematic, which then links to the official BMW part number 16111179978 for the Fuel Supply section.
