Metal fuel tank for BMW 7 Series E38 730i

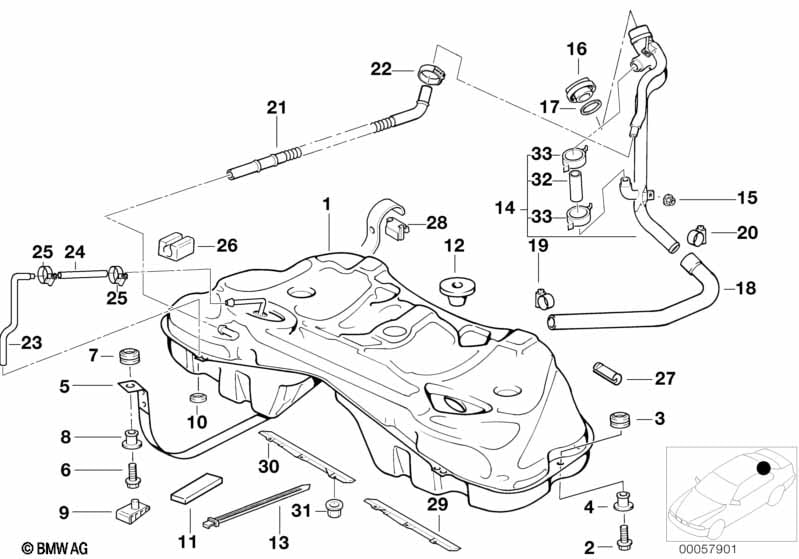

This Metal fuel tank technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 730i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Metal fuel tank | 85L | 1 | 16111181867 | $1069.17 | Shop at ECS Tuning | ||||
| For vehicles with Self-levelling suspension |
S220A=Yes |
|||||||||
| 01 | Metal fuel tank | 95L | 1 | 16111182044 | $1112.99 | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M8X30-Z1-10.9 | 2 | 07119904137 | $0.89 | Shop at ECS Tuning | ||||
| 03 | Rubber grommet | 2 | 16111182359 | $1.22 | Shop at ECS Tuning | |||||
| 04 | Spacer sleeve | 2 | 16111182360 | $3.23 | Shop at ECS Tuning | |||||
| 05 | Holding strap | 85L | 2 | 16111182451 | $26.17 | ENDED | Shop at ECS Tuning | |||
| 05 | Holding strap | 95L | 2 | 16111182517 | $26.17 | ENDED | Shop at ECS Tuning | |||
| 06 | Hex bolt | M8X30-Z1-10.9 | 2 | 07119904137 | $0.89 | Shop at ECS Tuning | ||||
| 07 | Rubber grommet | 2 | 16111182454 | $0.93 | Shop at ECS Tuning | |||||
| 08 | Spacer sleeve | 2 | 16117195118 | Shop at ECS Tuning | ||||||
| 09 | Wedge | 2 | 16111181868 | $1.43 | Shop at ECS Tuning | |||||
| 10 | Grommet | 2 | 16131152490 | $8.97 | Shop at ECS Tuning | |||||
| 11 | Base | 57X24 | 2 | 16111182358 | $1.85 | ENDED | Shop at ECS Tuning | |||
| 12 | Rubber buffer | D=50MM | 2 | 16111182944 | $1.75 | Shop at ECS Tuning | ||||
| 12 | Rubber buffer | 2 | 16111183086 | $2.95 | ENDED | Shop at ECS Tuning | ||||
| 13 | Cable tie | L=200MM/B=3,6MM | X | 61131367599 | $0.43 | Shop at ECS Tuning | ||||
| 14 | Plastic filler pipe | 1 | 09/1998 | 16111184667 | $137.92 | Shop at ECS Tuning | ||||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 14 | Plastic filler pipe | 1 | 16116752477 | $54.68 | Shop at ECS Tuning | |||||
| 15 | Hex nut | BM6-8-ZNFE SW | 2 | 09/1998 | 07129905470 | $0.29 | Shop at ECS Tuning | |||
| 16 | Filler cap without lock | 1 | 09/1998 | 16111184718 | $11.65 | Shop at ECS Tuning | ||||
| 18 | Hose | 1 | 09/1998 | 16111182200 | $53.12 | Shop at ECS Tuning | ||||
| 19 | Hose clamp | L37-43 | 1 | 07129952117 | $1.09 | Shop at ECS Tuning | ||||
| 20 | Hose clamp | L42-48 | 1 | 07129952119 | $1.15 | Shop at ECS Tuning | ||||
| 21 | Vent hose | 1 | 09/1998 | 16111182278 | $14.28 | SI 160395026 | Shop at ECS Tuning | |||
| 22 | Hose clamp | L16-30 | 2 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 23 | Pipe | D=8MM | 1 | 16111182105 | $7.70 | Shop at ECS Tuning | ||||
| 24 | Fuel hose | 8X13MM | X | 09/1998 | 16121180409 | $20.43 | Shop at ECS Tuning | |||
| 25 | Hose clamp | L12-15 | X | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 26 | Rubber buffer | D=8MM | 1 | 16121182106 | $1.65 | Shop at ECS Tuning | ||||
| 27 | Edge protection | 140MM | 2 | 16141182579 | $1.75 | SI 16039526 | Shop at ECS Tuning | |||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 32 | Fuel hose | 15X21MM | X | 01/2000 | 16111183710 | ENDED | Shop at ECS Tuning | |||
| 33 | Hose clamp | 2 | 01/2000 | 16131178921 | Shop at ECS Tuning | |||||
