Fuel pump and fuel level sensor for BMW 7 Series E38 740i (2001)

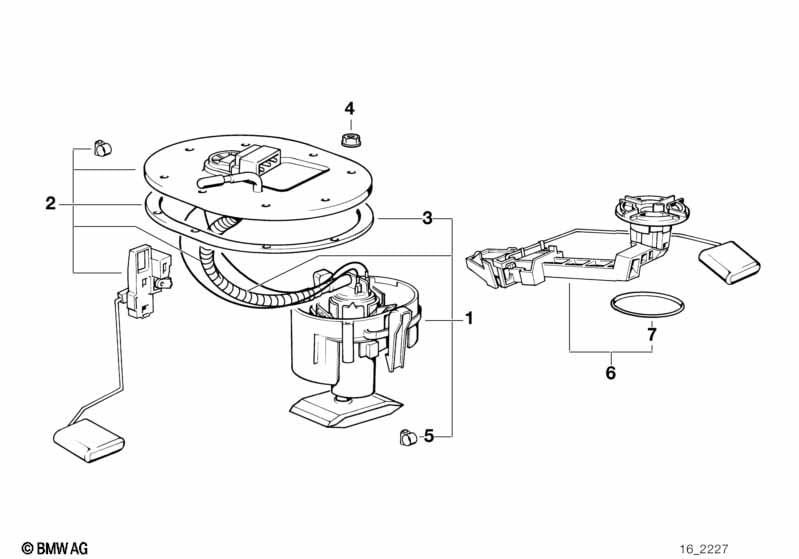

This Fuel pump and fuel level sensor technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel pump | 1 | 16141183947 | $330.09 | Shop at ECS Tuning | |||||
| 02 | Right fuel level sensor | 1 | 16141182354 | $125.41 | Shop at ECS Tuning | |||||
| 03 | Rubber seal | 1 | 16111182248 | $6.70 | Shop at ECS Tuning | |||||
| 04 | Hex nut with plate | AM6-8-ZNNIV SI | 8 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 05 | Hose clamp | L12-15 | 1 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 06 | Left fuel level sensor | 1 | 16141182111 | $62.63 | Shop at ECS Tuning | |||||
| 07 | O-ring | D=58,8X4,2 | 1 | 16111744369 | $1.68 | Shop at ECS Tuning |
