Exp.tank/activated Carbon container for BMW 5 Series E39 523i (2000)

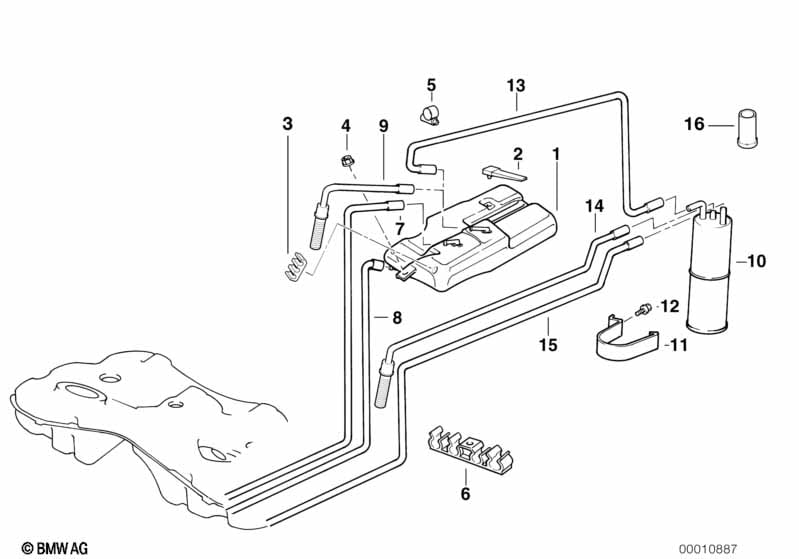

This Exp.tank/activated Carbon container technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Expansion tank | 1 | 09/1998 | 16131184480 | ENDED | Shop at ECS Tuning | ||||
| 01 | Expansion tank | 1 | 16131184480 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with EU2 exhaust emissions standard or without catalytic converter |
S168A=Yes S199A=Yes |
|||||||||
| 01 | Expansion tank | 1 | 09/1998 | 16131181574 | $149.61 | ENDED | Shop at ECS Tuning | |||
| 02 | Support | 1 | 16131182575 | Shop at ECS Tuning | ||||||
| 03 | Clip | 1 | 16131182249 | $0.57 | Shop at ECS Tuning | |||||
| 04 | Plastic nut for coarse threaded pin | 1 | 16131183133 | $0.37 | Shop at ECS Tuning | |||||
| 05 | Hose clamp | L12-15 | 2 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 05 | Hose clamp | 12,8-15,3 | 1 | 16121180240 | $0.77 | Shop at ECS Tuning | ||||
| 06 | Tubing support | 1 | 16121118686 | $2.68 | Shop at ECS Tuning | |||||
| 06 | Tubing support | 1 | 16131182264 | $1.65 | Shop at ECS Tuning | |||||
| 07 | Pipe 1 | 1 | 16131184011 | ENDED | Shop at ECS Tuning | |||||
| 07 | Pipe 1 | 1 | 09/1998 | 16131184011 | ENDED | Shop at ECS Tuning | ||||
| 07 | Pipe 1 | 1 | 09/1998 | 16131184074 | Shop at ECS Tuning | |||||
| For vehicles with EU2 exhaust emissions standard |
S168A=Yes |
|||||||||
| 07 | Pipe | 1 | 1 | 09/1998 | 16111183520 | Shop at ECS Tuning | ||||
| For vehicles with EU2 exhaust emissions standard or without catalytic converter |
S168A=Yes S199A=Yes |
|||||||||
| 07 | Pipe | 1 | 09/1998 | 16131183995 | $9.75 | Shop at ECS Tuning | ||||
| 08 | fuel tank breather line | 1 | 16131183818 | $18.75 | Shop at ECS Tuning | |||||
| 08 | fuel tank breather line | 1 | 09/1998 | 16131183818 | $18.75 | Shop at ECS Tuning | ||||
| 08 | fuel tank breather line | 1 | 09/1998 | 16131184293 | $12.40 | Shop at ECS Tuning | ||||
| For vehicles with EU2 exhaust emissions standard |
S168A=Yes |
|||||||||
| 08 | Pipe | 2 | 1 | 09/1998 | 16111183521 | Shop at ECS Tuning | ||||
| For vehicles with EU2 exhaust emissions standard or without catalytic converter |
S168A=Yes S199A=Yes |
|||||||||
| 08 | Pipe | 1 | 09/1998 | 16131182926 | $7.70 | ENDED | Shop at ECS Tuning | |||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 09 | Pipe | 3 | 1 | 16131184155 | $9.57 | ENDED | Shop at ECS Tuning | |||
| 09 | Pipe | 3 | 1 | 09/1998 | 16131184155 | $9.57 | ENDED | Shop at ECS Tuning | ||
| 10 | Activated Charcoal Filter | 1 | 03/1997 | 16136752623 | $131.82 | Shop at ECS Tuning | ||||
| 10 | Activated Charcoal Filter | 1 | 16136752623 | $131.82 | Shop at ECS Tuning | |||||
| 13 | Pipe | 1 | 16131184078 | $13.17 | Shop at ECS Tuning | |||||
| 13 | Pipe | 1 | 09/1998 | 16131184078 | $13.17 | Shop at ECS Tuning | ||||
| 14 | Vent pipe | 1 | 16131184554 | $10.13 | Shop at ECS Tuning | |||||
| 15 | Pipe | 3 | 1 | 16131184672 | Shop at ECS Tuning | |||||
| 15 | Pipe | 3 | 1 | 09/1998 | 16131184077 | ENDED | Shop at ECS Tuning | |||
| 15 | Pipe | 3 | 1 | 09/1998 | 16131184672 | Shop at ECS Tuning | ||||
| For vehicles with EU2 exhaust emissions standard |
S168A=Yes |
|||||||||
| 15 | Activated carbon container pipe | 1 | 09/1998 | 16111183536 | Shop at ECS Tuning | |||||
| 15 | Activated carbon container pipe | 1 | 09/1998 | 16131182927 | $12.02 | Shop at ECS Tuning | ||||
| 16 | Rubber grommet | 1 | 64128364482 | $1.82 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
