Fuel pipe for BMW 3 Series E36 328i (1996)

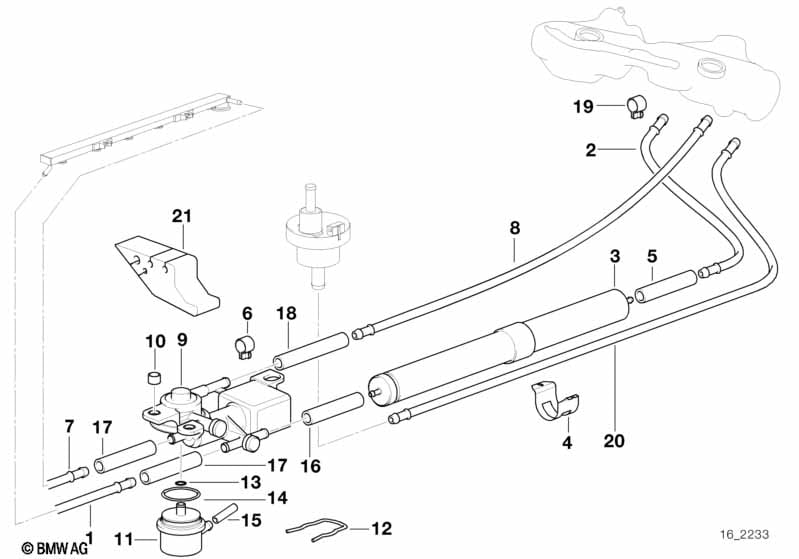

This Fuel pipe technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel supply line front | 1 | 16121182860 | $7.45 | Shop at ECS Tuning | |||||
| 02 | Fuel supply line rear | 1 | 16121182859 | $24.97 | Shop at ECS Tuning | |||||
| 03 | Fuel filter | D=55MM/L=260MM | 1 | 13321740985 | $44.04 | Shop at ECS Tuning | ||||
| 04 | Bracket fuel strainer | D=55MM | 1 | 13321740430 | $6.75 | Shop at ECS Tuning | ||||
| 05 | Kit for fuel hose and clamp | .70MM/FPM | 1 | 13311403416 | $12.72 | SI 130293692 | Shop at ECS Tuning | |||
| 05 | Fuel hose | 8X13MMX1000 | 1 | 13537563456 | $44.77 | Shop at ECS Tuning | ||||
| 06 | Hose clamp | L12-15 | 1 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 07 | Fuel return line front | 1 | 16121182862 | $7.45 | Shop at ECS Tuning | |||||
| 08 | Fuel return line rear | 1 | 16121182861 | $7.10 | Shop at ECS Tuning | |||||
| 09 | 3/2 directional control valve | 1 | 13311740281 | $134.45 | ENDED, +core | Shop at ECS Tuning | ||||
| 10 | Bush | 1 | 13311740937 | $1.27 | ENDED | Shop at ECS Tuning | ||||
| 11 | Pressure regulator | 3,5BAR/PIERBURG | 1 | 13531729319 | $75.10 | Shop at ECS Tuning | ||||
| 12 | Clamping spring | 1 | 13531341694 | $4.84 | Shop at ECS Tuning | |||||
| 13 | O-ring | 5X1,5 | 1 | 13531720252 | $3.75 | Shop at ECS Tuning | ||||
| 14 | O-ring | 20X2,5 | 1 | 13531720251 | $4.38 | Shop at ECS Tuning | ||||
| 15 | Vacuum pipe | RUNNING LOSS | 1 | 13531427104 | $5.58 | ENDED | Shop at ECS Tuning | |||
| 16 | Hose elbow | 1 | 13311744068 | $21.97 | Shop at ECS Tuning | |||||
| 17 | Fuel hose | 8X13MMX1000 | X | 13537563456 | $44.77 | Shop at ECS Tuning | ||||
| 18 | Fuel hose | 8X13MMX1000 | X | 13537563456 | $44.77 | Shop at ECS Tuning | ||||
| 19 | Hose clamp | L12-15 | 8 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 20 | Activated carbon container pipe | AKF/RUN.LOSS | 1 | 16121182863 | $14.28 | Shop at ECS Tuning | ||||
| 21 | Heat insulation | RUNNING LOSS | 1 | 16121183044 | $4.50 | Shop at ECS Tuning |
Notes
- SI = Service Information
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
