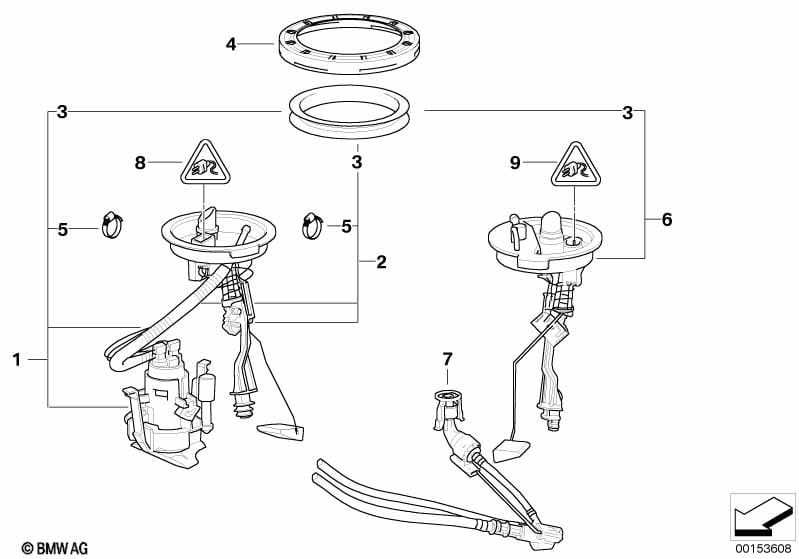

Fuel pump and fuel level sensor for BMW 5 Series E39 525d (2003)
This Fuel pump and fuel level sensor technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel pump | 1 | 16141183178 | $203.52 | Shop at ECS Tuning | |||||
| For vehicles with Rape methyl ester version (RME) |
S201A=Yes |
|||||||||
| 01 | Fuel pump | 1 | 16141183178 | $203.52 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Rubber seal | 1 | 16111184084 | $17.71 | Shop at ECS Tuning | |||||
| 02 | Right fuel level sensor | 1 | 16146752370 | $86.75 | Shop at ECS Tuning | |||||
| For vehicles with Rape methyl ester version (RME) |
S201A=Yes |
|||||||||
| 02 | Right fuel level sensor | 1 | 16146752370 | $86.75 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Rubber seal | 1 | 16111184084 | $17.71 | Shop at ECS Tuning | |||||
| 03 | Rubber seal | 2 | 16111184084 | $17.71 | Shop at ECS Tuning | |||||
| 04 | Screw cap | 2 | 16116762417 | $4.38 | Shop at ECS Tuning | |||||
| 05 | Hose clamp | L12-15 | 1 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 06 | Left fuel level sensor | 1 | 16141183179 | $86.75 | Shop at ECS Tuning | |||||
| For vehicles with Rape methyl ester version (RME) |
S201A=Yes |
|||||||||
| 06 | Left fuel level sensor | 1 | 16141183179 | $86.75 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Rubber seal | 1 | 16111184084 | $17.71 | Shop at ECS Tuning | |||||
| 07 | Left sucking jet pump with disconn.part | 1 | 16146753982 | Shop at ECS Tuning | ||||||
| 08 | Socket housing | 6 POL. | 1 | 61131387190 | $6.73 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Snap-in receptacle 2.5 ELA with cable | 1,0-2,5 MM² | 6 | 61130007571 | $2.65 | Shop at ECS Tuning | ||||
