Fuel pump and fuel level sensor for BMW 3 Series E36 325i (1995)

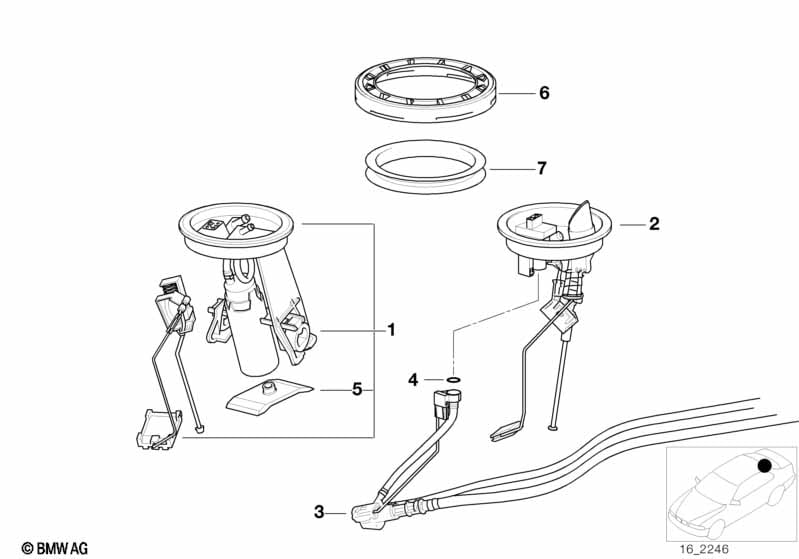

This Fuel pump and fuel level sensor technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Delivery unit, right | EKP-VDO | 1 | 02/1995 | 16146758736 | $330.93 | Shop at ECS Tuning | |||
| 02 | Left fuel level sensor | RUNNING LOOS | 1 | 02/1995 | 16146758255 | $60.82 | Shop at ECS Tuning | |||
| 03 | Left sucking jet pump with disconn.part | ILUE | 1 | 02/1995 | 16141183541 | $99.29 | Shop at ECS Tuning | |||
| 04 | O-ring | 1 | 02/1995 | 16141183543 | $1.97 | Shop at ECS Tuning | ||||
| 05 | Strainer | EKP-VDO | 1 | 02/1995 | 16141182890 | $15.97 | Shop at ECS Tuning | |||
| 05 | Strainer | EKP-BOSCH | 1 | 02/1995 | 16141183057 | $15.97 | Shop at ECS Tuning | |||
| 06 | Lock | 2 | 02/1995 | 16111181142 | $9.87 | Shop at ECS Tuning | ||||
| 07 | Rubber Ring | 2 | 02/1995 | 16111179637 | $7.15 | Shop at ECS Tuning |
