Fuel tank for BMW R45-R65LS..78-85 R65 (1985)

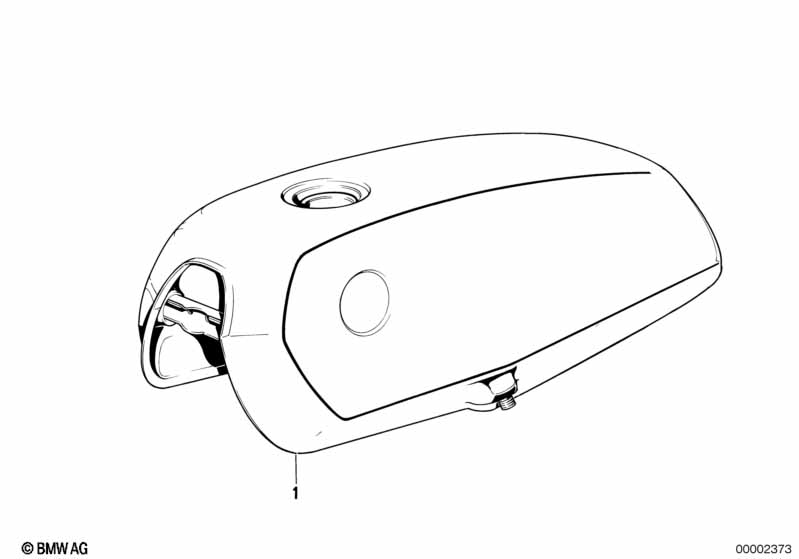

This Fuel tank technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel tank prime coated | 1 | 16111236764 | $685.55 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Fuel tank w.tool box prime coated | 1 | 16111238208 | ENDED, +core | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW R45-R65LS..78-85 R65 Fuel tank?
- This technical diagram illustrates the Fuel tank within the Fuel Supply group for the R45-R65LS..78-85 R65 produced during 1985. It provides a detailed exploded view of the components, identifying key parts such as the Fuel tank prime coated (Part #16111236764).
- Which models use the hardware listed in this Fuel tank?
- The hardware and components featured in the Fuel tank are specific to the R45-R65LS..78-85 R65 produced during 1985. These technical specifications ensure that parts like the Fuel tank prime coated (16111236764) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuel tank assembly?
- Each item in the Fuel tank corresponds to the numbered list below the illustration. For the R45-R65LS..78-85 R65, you can identify the Fuel tank prime coated by locating its position on the schematic, which then links to the official BMW part number 16111236764 for the Fuel Supply section.
