Fuel cooling system for BMW 7 Series E32 735iL (1992)
This Fuel cooling system technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 735iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version Australia and Saudi Arabia version |
L810A=Yes =Yes |
|||||||||
| 01 | Suction pipe evaporator-compressor | R12 | 1 | 09/1992 | 64538390678 | $178.02 | ENDED | Shop at ECS Tuning | ||
| 02 | Fuel hose | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 03 | Hose clamp | L12-15 | 6 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 04 | Return pipe | 1 | 16121179384 | $40.50 | ENDED | Shop at ECS Tuning | ||||
| 05 | Return pipe | 1 | 16121179053 | ENDED | Shop at ECS Tuning | |||||
| 06 | Fuel hose | 32MM-210MM | 1 | 13311288284 | $17.10 | Shop at ECS Tuning | ||||
| 07 | Grommet | 2 | 16121179369 | $4.87 | Shop at ECS Tuning | |||||
| 08 | Pipe clip | X | 16121179396 | $1.08 | ENDED | Shop at ECS Tuning | ||||
| 09 | Tubing support | 2 | 16131177494 | $1.60 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 735iL Fuel cooling system?

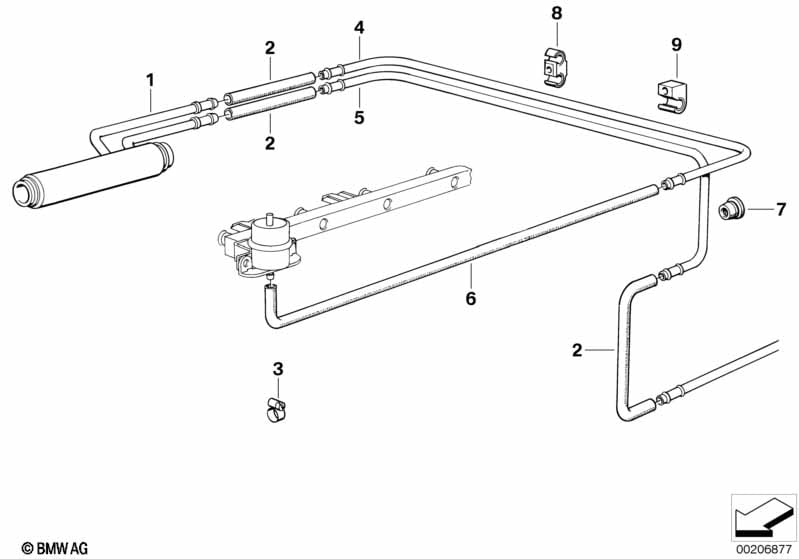

- This technical diagram illustrates the Fuel cooling system within the Fuel Supply group for the 7 Series E32 735iL produced during 1992. It provides a detailed exploded view of the components, identifying key parts such as the Suction pipe evaporator-compressor (Part #64538390678).
- Which models use the hardware listed in this Fuel cooling system?
- The hardware and components featured in the Fuel cooling system are specific to the 7 Series E32 735iL produced during 1992. These technical specifications ensure that parts like the Suction pipe evaporator-compressor (64538390678) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuel cooling system assembly?
- Each item in the Fuel cooling system corresponds to the numbered list below the illustration. For the 7 Series E32 735iL, you can identify the Suction pipe evaporator-compressor by locating its position on the schematic, which then links to the official BMW part number 64538390678 for the Fuel Supply section.
