Fuel cooling system for BMW 5 Series E28 520i (1987)

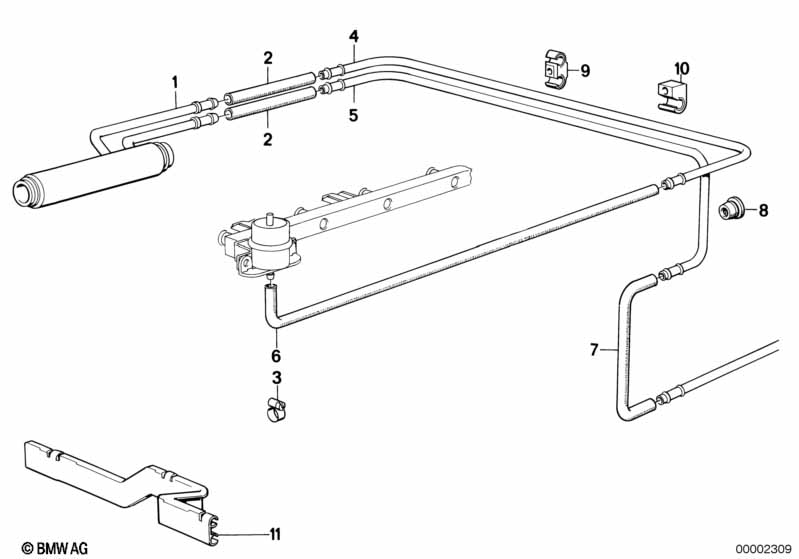

This Fuel cooling system technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 02 | Fuel hose | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 03 | Hose clamp | L12-15 | 1 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 04 | Fuel pipe | 1 | 16121179200 | $9.64 | Shop at ECS Tuning | |||||
| 06 | Hose | 1 | 13311717445 | $21.45 | ENDED | Shop at ECS Tuning | ||||
| 08 | Grommet | 4 | 16121179369 | $4.87 | Shop at ECS Tuning | |||||
| 09 | Fuel pipe bracket | 3 | 16126756924 | $1.08 | Shop at ECS Tuning | |||||
| 10 | Tubing support | 1 | 16131177494 | $1.60 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 520i Fuel cooling system?
- This technical diagram illustrates the Fuel cooling system within the Fuel Supply group for the 5 Series E28 520i produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Fuel hose (Part #16121180409).
- Which models use the hardware listed in this Fuel cooling system?
- The hardware and components featured in the Fuel cooling system are specific to the 5 Series E28 520i produced during 1987. These technical specifications ensure that parts like the Fuel hose (16121180409) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuel cooling system assembly?
- Each item in the Fuel cooling system corresponds to the numbered list below the illustration. For the 5 Series E28 520i, you can identify the Fuel hose by locating its position on the schematic, which then links to the official BMW part number 16121180409 for the Fuel Supply section.
