Fuel pipes and fuel filters for BMW 3 Series E30 320i (1991)

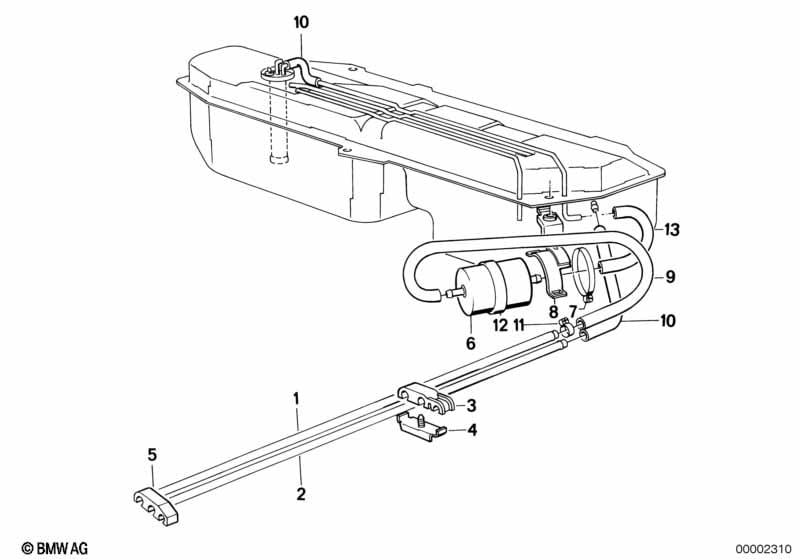

This Fuel pipes and fuel filters technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel supply line | L=1893MM | 1 | 09/1987 | 16121179681 | $30.55 | Shop at ECS Tuning | |||
| 02 | Fuel return line | L=1912MM | 1 | 09/1987 | 16121179682 | $26.36 | Shop at ECS Tuning | |||
| 03 | Clamp | 6 | 09/1987 | 16121177005 | $0.93 | Shop at ECS Tuning | ||||
| 04 | Holder | 4 | 09/1987 | 16121155064 | $1.62 | Shop at ECS Tuning | ||||
| 05 | Spacer holder | 3 | 09/1987 | 16121176766 | $1.03 | Shop at ECS Tuning | ||||
| 06 | Fuel filter | 1 | 09/1987 | 13321268231 | Shop at ECS Tuning | |||||
| 07 | Hose clamp | L71-78 | 1 | 09/1987 | 07129952129 | $1.48 | Shop at ECS Tuning | |||
| 08 | Bracket fuel strainer | 1 | 09/1987 | 16111179676 | $7.11 | ENDED | Shop at ECS Tuning | |||
| 09 | Hose | L=110MM | 1 | 09/1987 | 16121180399 | $20.41 | Shop at ECS Tuning | |||
| 10 | Fuel hose | 8X13MM | X | 09/1987 | 16121180409 | $20.43 | Shop at ECS Tuning | |||
| 11 | Hose clamp | L12-15 | 6 | 09/1987 | 07129952104 | $1.18 | Shop at ECS Tuning | |||
| 12 | Rubber Ring | 1 | 09/1987 | 16121179884 | $6.62 | Shop at ECS Tuning | ||||
| 13 | Hose | L=110MM | 1 | 09/1987 | 16121180399 | $20.41 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 320i Fuel pipes and fuel filters?
- This technical diagram illustrates the Fuel pipes and fuel filters within the Fuel Supply group for the 3 Series E30 320i produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the Fuel supply line (Part #16121179681).
- Which models use the hardware listed in this Fuel pipes and fuel filters?
- The hardware and components featured in the Fuel pipes and fuel filters are specific to the 3 Series E30 320i produced during 1991. These technical specifications ensure that parts like the Fuel supply line (16121179681) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuel pipes and fuel filters assembly?
- Each item in the Fuel pipes and fuel filters corresponds to the numbered list below the illustration. For the 3 Series E30 320i, you can identify the Fuel supply line by locating its position on the schematic, which then links to the official BMW part number 16121179681 for the Fuel Supply section.
