Suction device with pre-supply pump for BMW 5 Series E34 524td (1991)

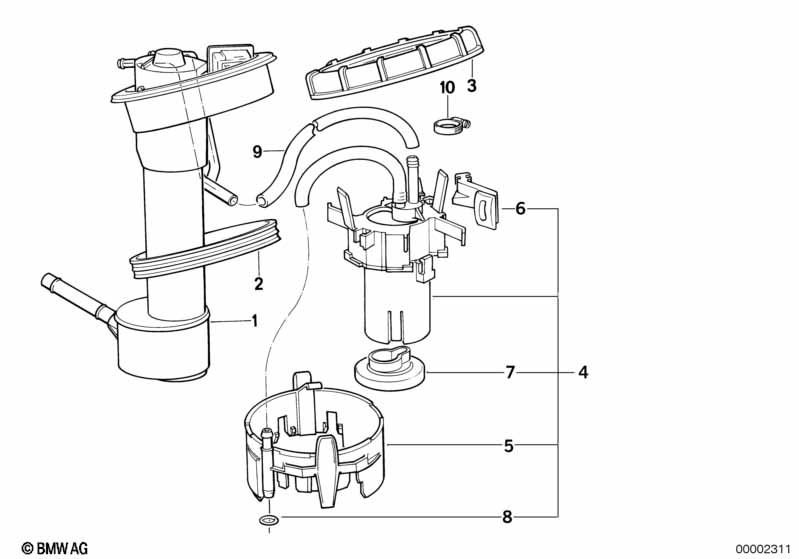

This Suction device with pre-supply pump technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 524td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sending unit assy plastic fuel tank | 1 | 16141180050 | Shop at ECS Tuning | ||||||
| 02 | Rubber Ring | 1 | 16111179637 | $7.15 | Shop at ECS Tuning | |||||
| 03 | Lock | 1 | 16111181142 | $9.87 | Shop at ECS Tuning | |||||
| 04 | Fuel lift pump | 1 | 16141180118 | $185.30 | Shop at ECS Tuning | |||||
| 05 | Braket fuel pump | 1 | 16141179119 | $25.83 | Shop at ECS Tuning | |||||
| 06 | Rubber Mounting | 4 | 16141178877 | $2.03 | Shop at ECS Tuning | |||||
| 07 | Strainer | 1 | 16141181829 | Shop at ECS Tuning | ||||||
| 08 | O-ring | 7X1,5 | 1 | 16141179153 | $0.89 | Shop at ECS Tuning | ||||
| 09 | Fuel hose | 8X13 | X | 16121180040 | $25.73 | Shop at ECS Tuning | ||||
| 10 | Hose clamp | L12-15 | 2 | 07129952104 | $1.18 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 524td Suction device with pre-supply pump?
- This technical diagram illustrates the Suction device with pre-supply pump within the Fuel Supply group for the 5 Series E34 524td produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the Sending unit assy plastic fuel tank (Part #16141180050).
- Which models use the hardware listed in this Suction device with pre-supply pump?
- The hardware and components featured in the Suction device with pre-supply pump are specific to the 5 Series E34 524td produced during 1991. These technical specifications ensure that parts like the Sending unit assy plastic fuel tank (16141180050) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Suction device with pre-supply pump assembly?
- Each item in the Suction device with pre-supply pump corresponds to the numbered list below the illustration. For the 5 Series E34 524td, you can identify the Sending unit assy plastic fuel tank by locating its position on the schematic, which then links to the official BMW part number 16141180050 for the Fuel Supply section.
