Expansion tank/tubing for BMW 3 Series E36 M3 (1995)

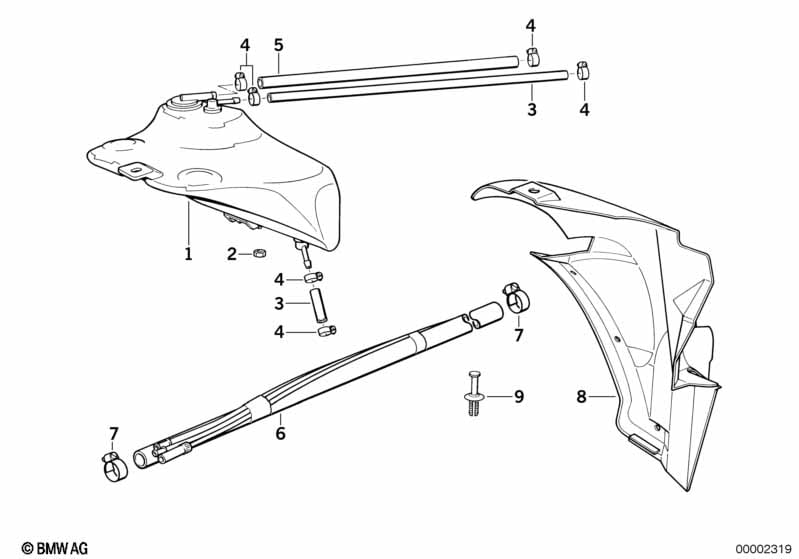

This Expansion tank/tubing technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Expansion tank | 1 | 16131182156 | $249.67 | Shop at ECS Tuning | |||||
| 02 | Plastic nut | 3 | 51711958025 | $0.26 | Shop at ECS Tuning | |||||
| 03 | Fuel hose | 6X11MM | X | 13311272750 | $11.62 | Shop at ECS Tuning | ||||
| 04 | Hose clamp | L12-15 | X | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 05 | Fuel hose | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 06 | Vent pipe | 1 | 16131181554 | $167.67 | ENDED, SI 160192472 | Shop at ECS Tuning | ||||
| 07 | Hose clamp | L16-30 | 4 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 08 | Stone-chip guard | 1 | 16132227852 | $26.33 | Shop at ECS Tuning | |||||
| 09 | Expanding rivet | D = 6MM | 3 | 51111908077 | $0.30 | Shop at ECS Tuning |
