Fuel pump and fuel level sensor for BMW 3 Series E36 325td (1998)

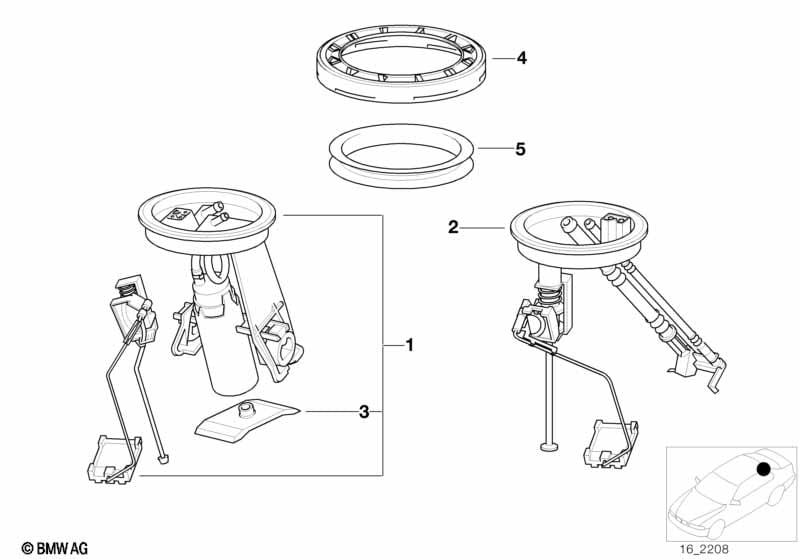

This Fuel pump and fuel level sensor technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Delivery unit, right | 1 | 16141184748 | $297.84 | Shop at ECS Tuning | |||||
| 02 | Left fuel level sensor | 1 | 16141180517 | $62.63 | SI 160192472 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Rubber Ring | 1 | 16111179637 | $7.15 | Shop at ECS Tuning | |||||
| 03 | Strainer | 1 | 16141181829 | Shop at ECS Tuning | ||||||
| 04 | Lock | 2 | 16111181142 | $9.87 | Shop at ECS Tuning | |||||
| 05 | Rubber Ring | 2 | 16111179637 | $7.15 | Shop at ECS Tuning | |||||
