Fuel tank for BMW 5 Series E39 528i (2000)

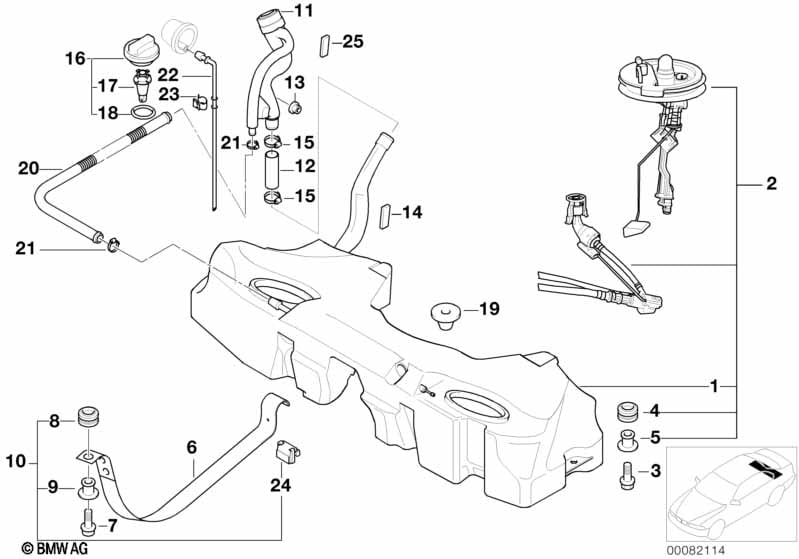

This Fuel tank technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Plastic fuel tank with left sensor | 70L | 1 | 07/2000 | 16146752367 | Shop at ECS Tuning | ||||
| 03 | Fillister-head screw | M8X30-8.8-ZNS3 | 2 | 08/2016 | 07119902829 | Shop at ECS Tuning | ||||
| 03 | ISA screw | M8X30-8.8-ZNS3 | 2 | 07129904067 | $2.43 | Shop at ECS Tuning | ||||
| 04 | Rubber grommet | 2 | 16111182609 | $1.13 | Shop at ECS Tuning | |||||
| 05 | Spacer sleeve | 2 | 16137194473 | $5.35 | Shop at ECS Tuning | |||||
| 06 | Holding strap | 2 | 16111184911 | $10.62 | Shop at ECS Tuning | |||||
| 07 | Fillister-head screw | M8X30-8.8-ZNS3 | 2 | 08/2016 | 07119902829 | Shop at ECS Tuning | ||||
| 07 | ISA screw | M8X30-8.8-ZNS3 | 2 | 07129904067 | $2.43 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Washer | 8,4X24X2-ZNS3 | 2 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
| 08 | Rubber grommet | 2 | 16111182454 | $0.93 | Shop at ECS Tuning | |||||
| 09 | Spacer sleeve | 2 | 16117195118 | Shop at ECS Tuning | ||||||
| 10 | Holding strap | 2 | 16111184911 | $10.62 | Shop at ECS Tuning | |||||
| 11 | Plastic filler pipe | 1 | 09/1998 | 07/2001 | 16116758277 | $54.68 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Filler cap | 1 | 09/1998 | 07/2001 | 16117193372 | Shop at ECS Tuning | ||||
| For vehicles with EU2 exhaust emissions standard |
S168A=Yes |
|||||||||
| 11 | Plastic filler pipe | 1 | 09/1998 | 07/2001 | 16116758274 | $54.68 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Filler cap | 1 | 09/1998 | 07/2001 | 16117193372 | Shop at ECS Tuning | ||||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 11 | Plastic filler pipe without catalyst | 1 | 07/2001 | 16116758276 | $54.68 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Filler cap | 1 | 07/2001 | 16117193372 | Shop at ECS Tuning | |||||
| 12 | Hose | 1 | 16116760118 | $42.42 | Shop at ECS Tuning | |||||
| For vehicles with EU2 exhaust emissions standard or without catalytic converter |
S168A=Yes S199A=Yes |
|||||||||
| 12 | Fuel hose | 1 | 16111183519 | Shop at ECS Tuning | ||||||
| 13 | Hex nut | M6 | 1 | 16111184607 | $1.87 | Shop at ECS Tuning | ||||
| 14 | Base | 1 | 16111182911 | $1.23 | Shop at ECS Tuning | |||||
| 15 | Hose clamp | L42-48 | 2 | 07129952119 | $1.15 | Shop at ECS Tuning | ||||
| 16 | Filler cap | 1 | 07/2001 | 16111184731 | $18.43 | Shop at ECS Tuning | ||||
| 17 | Filler cap pin | 1 | 07/2001 | 16111183342 | $0.72 | ENDED | Shop at ECS Tuning | |||
| 19 | Pushrod seal | 2 | 51211913779 | $1.03 | Shop at ECS Tuning | |||||
| 20 | Vent hose | 1 | 09/1998 | 16131184079 | +core | Shop at ECS Tuning | ||||
| For vehicles with EU2 exhaust emissions standard or without catalytic converter |
S168A=Yes S199A=Yes |
|||||||||
| 20 | Vent hose | 1 | 09/1998 | 16131183605 | Shop at ECS Tuning | |||||
| 21 | Hose clamp | 23,9-27,1 | 2 | 11631716970 | $0.79 | Shop at ECS Tuning | ||||
| 21 | Hose clamp | 12,8-15,3 | 1 | 16121180240 | $0.77 | Shop at ECS Tuning | ||||
| 22 | Outlet pipe | 1 | 16111183478 | $4.87 | Shop at ECS Tuning | |||||
| 23 | Cable clamp | D=8/B=1,5 | 1 | 61131354726 | $0.42 | Shop at ECS Tuning | ||||
| 24 | Damper rubber | 2 | 16111183136 | $1.28 | Shop at ECS Tuning | |||||
| 25 | Set felt strip self-adhesive | 1 | 51452353024 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
