Fuel pipe for BMW 5 Series E39 528i (2000)

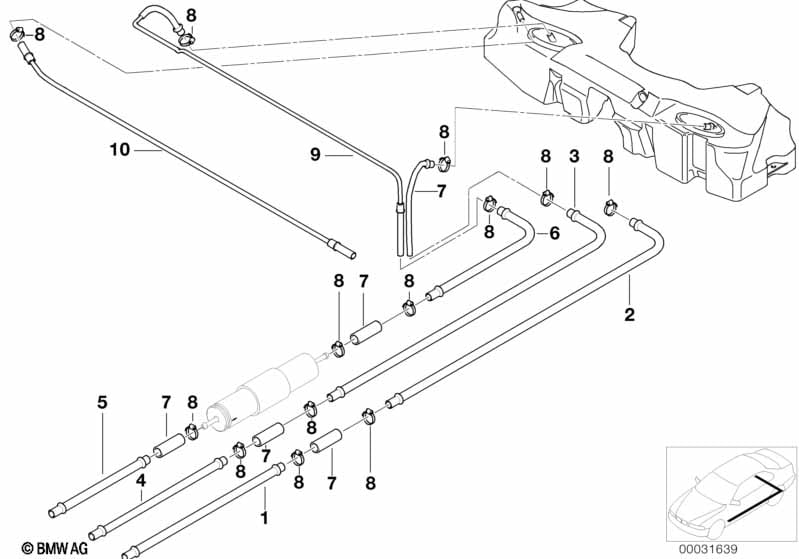

This Fuel pipe technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | AUXILIARY HEATING FUEL PIPE see main group 64 FUEL FILTER see main section 13 |
|||||||||
| 01 | Ventilation line ACF front | 1 | 05/2000 | 16126751006 | $8.13 | Shop at ECS Tuning | ||||
| 02 | Ventilation line ACF rear | 1 | 16131183153 | $9.93 | Shop at ECS Tuning | |||||
| 03 | Rear fuel pipe | 1 | 16111183150 | $20.23 | Shop at ECS Tuning | |||||
| 04 | Fuel return line front | 1 | 16121183613 | $24.97 | Shop at ECS Tuning | |||||
| 05 | Fuel supply line front | 1 | 16121183612 | $78.04 | Shop at ECS Tuning | |||||
| 06 | Rear fuel pipe | 1 | 16121183276 | $15.25 | Shop at ECS Tuning | |||||
| 08 | Hose clamp | L12-15 | X | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 09 | Fuel pipe | 1 | 16111183297 | $19.50 | Shop at ECS Tuning | |||||
| 10 | Vent pipe | 1 | 16111183301 | $20.23 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 528i Fuel pipe?
- This technical diagram illustrates the Fuel pipe within the Fuel Supply group for the 5 Series E39 528i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Ventilation line ACF front (Part #16126751006).
- Which models use the hardware listed in this Fuel pipe?
- The hardware and components featured in the Fuel pipe are specific to the 5 Series E39 528i produced during 2000. These technical specifications ensure that parts like the Ventilation line ACF front (16126751006) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuel pipe assembly?
- Each item in the Fuel pipe corresponds to the numbered list below the illustration. For the 5 Series E39 528i, you can identify the Ventilation line ACF front by locating its position on the schematic, which then links to the official BMW part number 16126751006 for the Fuel Supply section.
