Fuel tank mounting parts for BMW E169 (F 650, F 650 ST) F 650 97 (0162)
This Fuel tank mounting parts technical drawing provides a detailed breakdown of the assembly for the E169 (F 650, F 650 ST) F 650 97 (0162). It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel tank | 1 | 16112328488 | $379.43 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Front black trim panel | 1 | 16112346013 | ENDED | Shop at ECS Tuning | |||||
| 03 | Fillister-head screw | M5X30 A2-70 | 3 | 16112346177 | $2.90 | Shop at ECS Tuning | ||||
| 03 | Fillister-head screw | M5X16 A2-70 | 3 | 16112346178 | $1.19 | Shop at ECS Tuning | ||||
| 04 | Filler tube | D=23,5 MM | 1 | 16112328475 | $38.01 | ENDED | Shop at ECS Tuning | |||
| 04 | Filler tube | D=28 MM | 1 | 16112346170 | ENDED | Shop at ECS Tuning | ||||
| 05 | Gasket | 1 | 16112328477 | $26.32 | ENDED | Shop at ECS Tuning | ||||
| 06 | Hexagon screw with flange | M6X16 | 2 | 12132345541 | $0.87 | Shop at ECS Tuning | ||||
| 06 | Screw | M6X15-8.8 ZNS | 2 | 16112345083 | $0.87 | Shop at ECS Tuning | ||||
| 07 | Fuel tap | 1 | 16112345127 | $31.79 | ENDED, +core | Shop at ECS Tuning | ||||
| 08 | O-ring | 23,4X3,53 | 1 | 11317690476 | $2.46 | Shop at ECS Tuning | ||||
| 09 | NIpple | 2 | 16112345692 | $3.04 | ENDED | Shop at ECS Tuning | ||||
| 10 | Wave washer | 6,4X11X0,5 | 2 | 16112345085 | $0.55 | Shop at ECS Tuning | ||||
| 11 | Hose | 7,5X13 | X | 16122345065 | $13.09 | ENDED | Shop at ECS Tuning | |||
| 12 | Clamp | 11,9 | 2 | 16112345077 | $1.39 | Shop at ECS Tuning | ||||
| 13 | Hose | 5,5X10X1500 | X | 13712345164 | $13.31 | ENDED | Shop at ECS Tuning | |||
| 13 | Hose running meter | Ø 8X4,5 | X | 16111342049 | $13.06 | Shop at ECS Tuning | ||||
| 14 | Clamp | 9,1 | 7 | 16112345078 | $1.39 | Shop at ECS Tuning | ||||
| 15 | Filler cap | 1 | 16112346374 | $203.81 | ENDED, +core | Shop at ECS Tuning | ||||
| 16 | Fuel tap gasket set | 1 | 16112345108 | $12.44 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW E169 (F 650, F 650 ST) F 650 97 (0162) Fuel tank mounting parts?

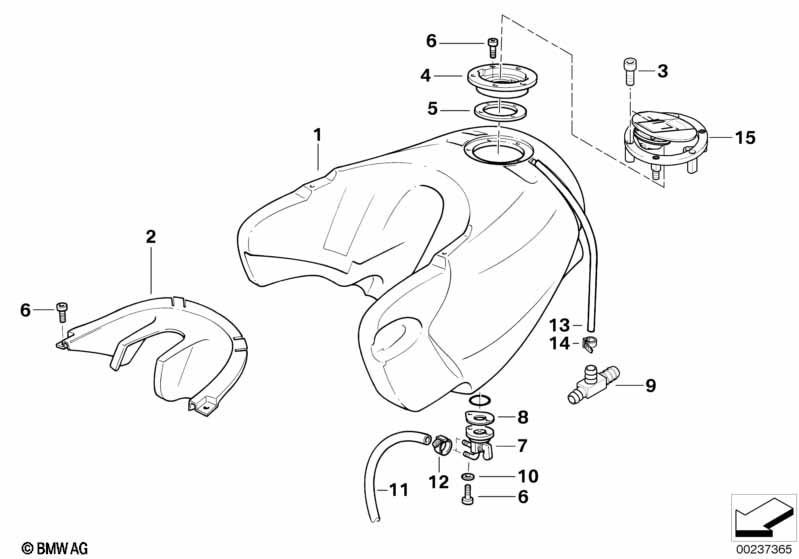

- This technical diagram illustrates the Fuel tank mounting parts within the Fuel Supply group for the E169 (F 650, F 650 ST) F 650 97 (0162). It provides a detailed exploded view of the components, identifying key parts such as the Fuel tank (Part #16112328488).
- Which models use the hardware listed in this Fuel tank mounting parts?
- The hardware and components featured in the Fuel tank mounting parts are specific to the E169 (F 650, F 650 ST) F 650 97 (0162). These technical specifications ensure that parts like the Fuel tank (16112328488) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuel tank mounting parts assembly?
- Each item in the Fuel tank mounting parts corresponds to the numbered list below the illustration. For the E169 (F 650, F 650 ST) F 650 97 (0162), you can identify the Fuel tank by locating its position on the schematic, which then links to the official BMW part number 16112328488 for the Fuel Supply section.
