Fuel pipe and mounting parts for BMW 5 Series E39 540i (2003)

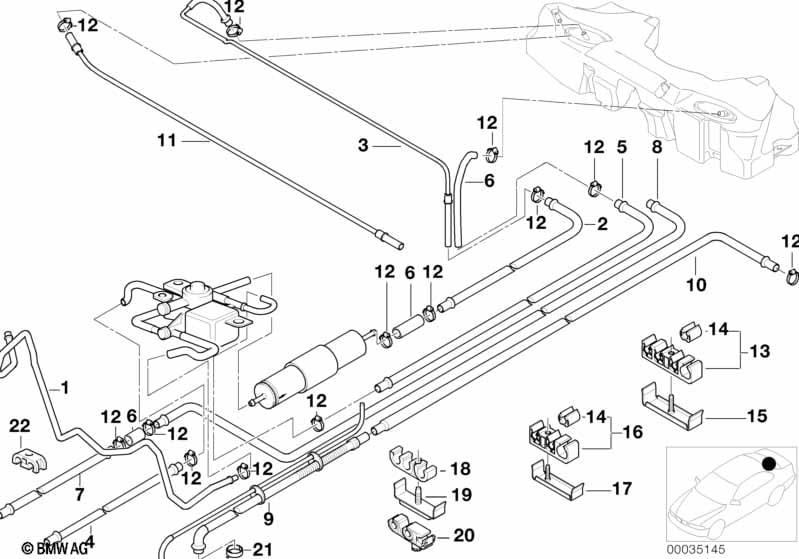

This Fuel pipe and mounting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | AUXILIARY HEATING FUEL PIPE see main group 64 |
|||||||||
| 03 | Fuel pipe | 1 | 09/1997 | 16111183297 | $19.50 | Shop at ECS Tuning | ||||
| 06 | Fuel hose | 8X13MMX1000 | X | 09/1997 | 13537563456 | $44.77 | Shop at ECS Tuning | |||
| 10 | Vacuum pipe | HINTEN | 1 | 09/1997 | 16131184031 | $7.70 | Shop at ECS Tuning | |||
| 11 | Vent pipe | 1 | 09/1997 | 16111183301 | $20.23 | Shop at ECS Tuning | ||||
| 12 | Hose clamp | L12-15 | X | 09/1997 | 07129952104 | $1.18 | Shop at ECS Tuning | |||
| 13 | Tubing support | 2 | 09/1997 | 16121184101 | $3.23 | Shop at ECS Tuning | ||||
| 14 | Rubber buffer | 3 | 09/1997 | 16121178832 | $2.08 | Shop at ECS Tuning | ||||
| 15 | Fuel pipe bracket | 2 | 09/1997 | 16121181912 | $2.17 | Shop at ECS Tuning | ||||
| 16 | Tubing support | 1 | 09/1997 | 16121182658 | $1.65 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Rubber buffer | 1 | 09/1997 | 16121178832 | $2.08 | Shop at ECS Tuning | ||||
| 17 | bracket for line holder | 1 | 09/1997 | 16121182660 | $1.62 | Shop at ECS Tuning | ||||
| 18 | Tubing support | 1 | 09/1997 | 16121118686 | $2.68 | Shop at ECS Tuning | ||||
| 19 | Holder | 1 | 09/1997 | 16121155064 | $1.62 | Shop at ECS Tuning | ||||
| 20 | Tubing support | 1 | 09/1997 | 16121183468 | $2.00 | Shop at ECS Tuning | ||||
| 21 | Supporting ring | 1 | 09/1997 | 11611437456 | $1.12 | Shop at ECS Tuning | ||||
| 22 | Clamping | 1 | 16121107928 | $4.00 | Shop at ECS Tuning | |||||
