Fuel pipe and mounting parts for BMW 3 Series E46 328i (2000)

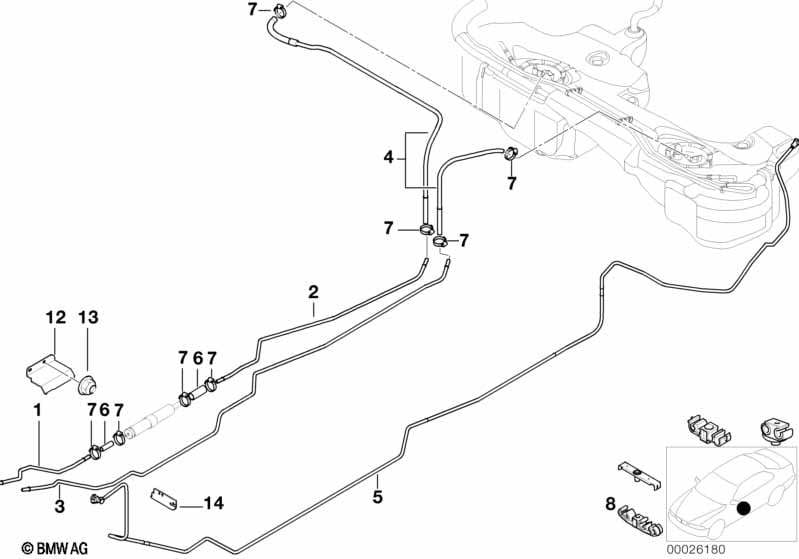

This Fuel pipe and mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel supply line front | 1 | 16121183764 | $11.07 | Shop at ECS Tuning | |||||
| 02 | Fuel supply line rear | 1 | 16121183759 | $11.07 | Shop at ECS Tuning | |||||
| 03 | Fuel return line | 1 | 16121183768 | $11.85 | Shop at ECS Tuning | |||||
| 04 | Fuel pipes set | 1 | 16117175998 | $30.47 | Shop at ECS Tuning | |||||
| 05 | Scavenge air line | 1 | 16111184135 | $20.23 | Shop at ECS Tuning | |||||
| 06 | Fuel hose | 8X13MMX1000 | X | 13537563456 | $44.77 | Shop at ECS Tuning | ||||
| 07 | Hose clamp | L12-15 | 6 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 08 | Pipe clip | 2 | 16121183772 | $1.43 | Shop at ECS Tuning | |||||
| 09 | Bracket | 2 | 16127195327 | $2.12 | Shop at ECS Tuning | |||||
| 10 | Brake pipe bracket | 1 | 34301164005 | $0.68 | Shop at ECS Tuning | |||||
| 11 | Pipe clip | 2 | 16121179396 | $1.08 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 328i Fuel pipe and mounting parts?
- This technical diagram illustrates the Fuel pipe and mounting parts within the Fuel Supply group for the 3 Series E46 328i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Fuel supply line front (Part #16121183764).
- Which models use the hardware listed in this Fuel pipe and mounting parts?
- The hardware and components featured in the Fuel pipe and mounting parts are specific to the 3 Series E46 328i produced during 2000. These technical specifications ensure that parts like the Fuel supply line front (16121183764) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuel pipe and mounting parts assembly?
- Each item in the Fuel pipe and mounting parts corresponds to the numbered list below the illustration. For the 3 Series E46 328i, you can identify the Fuel supply line front by locating its position on the schematic, which then links to the official BMW part number 16121183764 for the Fuel Supply section.
