Fuel pump and fuel level sensor for BMW 3 Series E46 323i (2000)

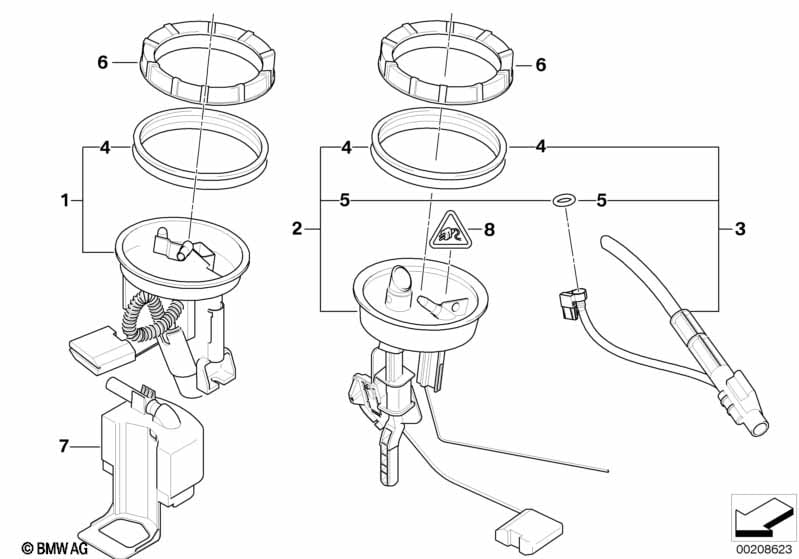

This Fuel pump and fuel level sensor technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|

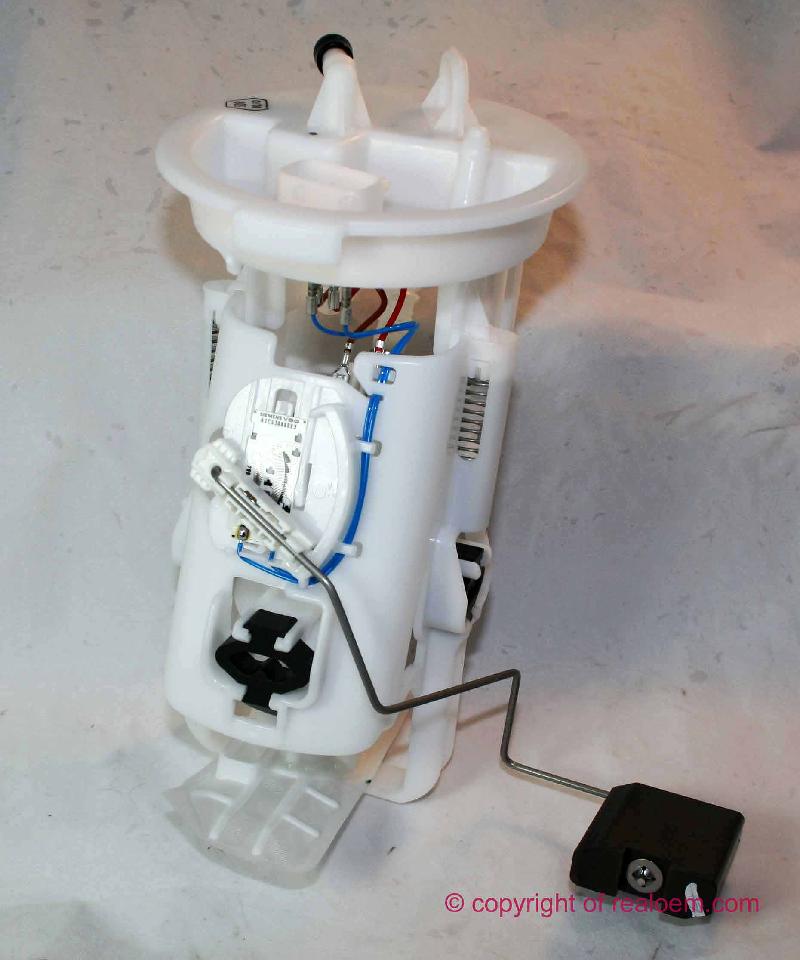

| 01 | Delivery unit, right | 1 | 16146766942 | $330.93 | Shop at ECS Tuning | |||||
| 02 | Left fuel level sensor | 1 | 16116768788 | $86.75 | Shop at ECS Tuning | |||||
| 03 | Sucking jet pump | 1 | 16146755880 | $99.29 | Shop at ECS Tuning | |||||
| 04 | Rubber seal | 2 | 03/2001 | 16141182905 | $6.70 | Shop at ECS Tuning | ||||
| 04 | Rubber seal | 2 | 16111184084 | $17.71 | Shop at ECS Tuning | |||||
| 05 | O-ring | 1 | 16141183543 | $1.97 | Shop at ECS Tuning | |||||
| 06 | Screw cap | 2 | 16116762417 | $4.38 | Shop at ECS Tuning | |||||
| 08 | Universal socket housing uncoded | 2 POL. | 1 | 61138352390 | $19.65 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Snap-in receptacle 2.5 ELA with cable | 0,75-1,0 MM² | 1 | 61130007569 | $2.27 | Shop at ECS Tuning | ||||
| -- | Snap-in receptacle 2.5 ELA with cable | 1,0-2,5 MM² | 1 | 61130007571 | $2.65 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 323i Fuel pump and fuel level sensor?
- This technical diagram illustrates the Fuel pump and fuel level sensor within the Fuel Supply group for the 3 Series E46 323i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Delivery unit, right (Part #16146766942).
- Which models use the hardware listed in this Fuel pump and fuel level sensor?
- The hardware and components featured in the Fuel pump and fuel level sensor are specific to the 3 Series E46 323i produced during 2000. These technical specifications ensure that parts like the Delivery unit, right (16146766942) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuel pump and fuel level sensor assembly?
- Each item in the Fuel pump and fuel level sensor corresponds to the numbered list below the illustration. For the 3 Series E46 323i, you can identify the Delivery unit, right by locating its position on the schematic, which then links to the official BMW part number 16146766942 for the Fuel Supply section.
