Exp.tank/activated Carbon container for BMW 3 Series E46 323i (2000)

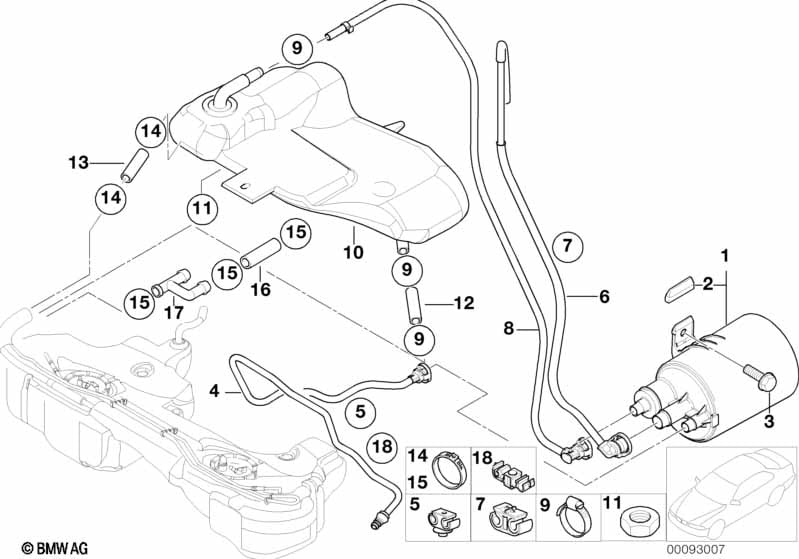

This Exp.tank/activated Carbon container technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Activated Charcoal Filter | 1 | 16131183797 | $87.89 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Clip | 2 | 16136751872 | Shop at ECS Tuning | ||||||
| -- | Vent pipe | 1 | 16136751873 | $15.25 | Shop at ECS Tuning | |||||
| 02 | Cap | 1 | 16131183918 | $3.32 | Shop at ECS Tuning | |||||
| 03 | Hex bolt with washer | M6X25-ZNNIV SI | 1 | 11/2000 | 07119905400 | $0.65 | Shop at ECS Tuning | |||
| 03 | Hex bolt with washer | M6X23 | 1 | 07119905591 | $0.29 | Shop at ECS Tuning | ||||
| 04 | Vent pipe | 1 | 09/1999 | 16136751177 | Shop at ECS Tuning | |||||
| 05 | Pipe clip | 1 | 16121179396 | $1.08 | ENDED | Shop at ECS Tuning | ||||
| 06 | Vent pipe | 1 | 09/1999 | 16136751873 | $15.25 | Shop at ECS Tuning | ||||
| 07 | Clip | 2 | 09/1999 | 16136751872 | Shop at ECS Tuning | |||||
| 08 | Vent pipe | 1 | 16117177236 | $20.23 | Shop at ECS Tuning | |||||
| 09 | Hose clamp | L12-15 | 3 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 10 | Expansion tank | 1 | 16136752640 | $71.73 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 10 | Expansion tank | 1 | 16137176540 | Shop at ECS Tuning | ||||||
| 11 | Plastic nut | 2 | 51711958025 | $0.26 | Shop at ECS Tuning | |||||
| 12 | Fuel hose | 8X13MMX1000 | X | 13537563456 | $44.77 | Shop at ECS Tuning | ||||
| 13 | Fuel hose | E6X11MM/FPM | X | 16127175977 | $28.20 | Shop at ECS Tuning | ||||
| 14 | Hose clamp | D=10,8-13,3 | 2 | 32411156956 | $0.62 | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 15 | Hose clamp | 23,9-27,1 | 3 | 11631716970 | $0.79 | Shop at ECS Tuning | ||||
| 16 | Fuel hose | X | 16111182825 | $47.67 | Shop at ECS Tuning | |||||
| 17 | Distribution piece | 3 X D18 | 1 | 16117175999 | +core | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
