Expansion tank for BMW 3 Series E46 318d (2003)

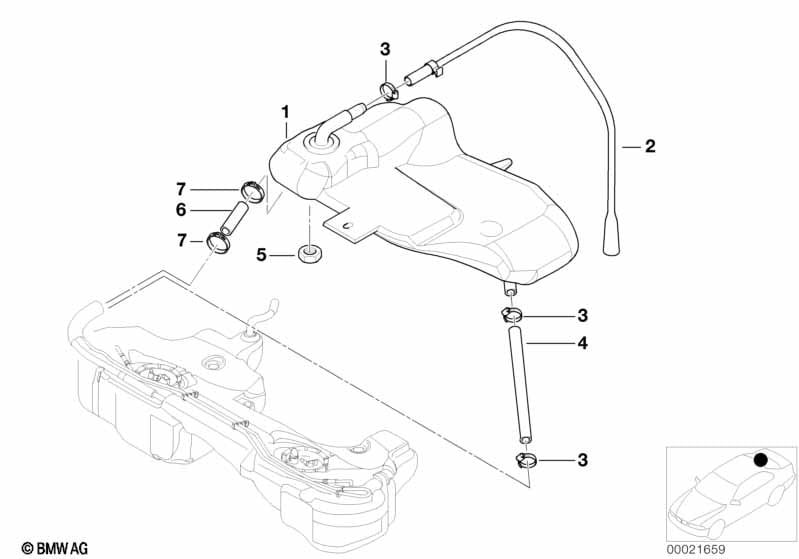

This Expansion tank technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Expansion tank | 1 | 16136752640 | $71.73 | ENDED | Shop at ECS Tuning | ||||
| 02 | Vent pipe | 1 | 07/2005 | 16131184041 | $6.70 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Rape methyl ester version (RME) |
S201A=Yes |
|||||||||
| 02 | Vent pipe | 1 | 16137177500 | ENDED | Shop at ECS Tuning | |||||
| 03 | Hose clamp | L12-15 | 5 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 04 | Fuel hose | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| For vehicles with Rape methyl ester version (RME) |
S201A=Yes |
|||||||||
| 04 | Fuel hose | 8X13MMX1000 | X | 13537563456 | $44.77 | Shop at ECS Tuning | ||||
| 05 | Plastic nut | 2 | 51711958025 | $0.26 | Shop at ECS Tuning | |||||
| 06 | Fuel hose | 6X11MM | X | 13311272750 | $11.62 | Shop at ECS Tuning | ||||
| For vehicles with Rape methyl ester version (RME) |
S201A=Yes |
|||||||||
| 06 | Fuel hose | E6X11MM/FPM | X | 16127175977 | $28.20 | Shop at ECS Tuning | ||||
| 07 | Hose clamp | D=10,8-13,3 | 2 | 32411156956 | $0.62 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 318d Expansion tank?
- This technical diagram illustrates the Expansion tank within the Fuel Supply group for the 3 Series E46 318d produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Expansion tank (Part #16136752640).
- Which models use the hardware listed in this Expansion tank?
- The hardware and components featured in the Expansion tank are specific to the 3 Series E46 318d produced during 2003. These technical specifications ensure that parts like the Expansion tank (16136752640) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Expansion tank assembly?
- Each item in the Expansion tank corresponds to the numbered list below the illustration. For the 3 Series E46 318d, you can identify the Expansion tank by locating its position on the schematic, which then links to the official BMW part number 16136752640 for the Fuel Supply section.
